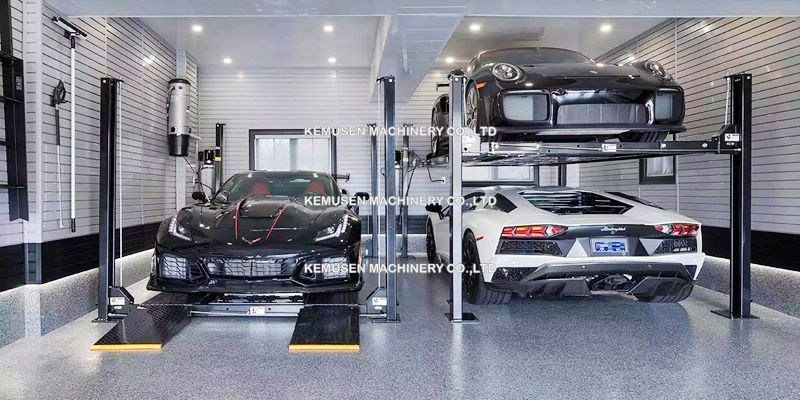

Synchronous Screw Jack Lift System Are Widely Used in Vehicle Ramp And Vehicle Lifts Due To Their Self-locking Ability, Precision, And Reliability. They use a worm gear and an acme or trapezoidal lead screw to convert rotational motion into linear movement for lifting and lowering heavy loads, such as vehicles.
How they function in vehicle lifts
Mechanical advantage: The worm gear mechanism provides a high mechanical advantage, allowing a relatively small input force (either manual or motorized) to lift a heavy vehicle.
Self-locking capability: The high friction in the worm gear design prevents the screw from back-driving, meaning the load is held securely in place even if the power source is removed. This is a critical safety feature for vehicle lifts and ramps, as it prevents the vehicle from accidentally lowering.
Synchronized lifting: Multiple worm gear screw jacks can be linked together with shafts and gearboxes, allowing them to be operated by a single motor or hand crank. This is crucial for vehicle lifts, as it ensures all four corners of the vehicle are lifted and lowered in perfect unison, providing stability and preventing damage.
Precise positioning: The design allows for very fine and controlled adjustments, enabling precise positioning of a vehicle at a specific height.
Advantages in vehicle lifting applications
Enhanced safety: The self-locking feature is the primary safety advantage, ensuring the vehicle remains supported even in the event of a power failure.
Reliability and durability: With fewer moving parts than hydraulic systems, screw jacks are known for their long service life and dependable performance, even in harsh conditions.
Precision and control: The ability to make fine, incremental adjustments makes them ideal for tasks like vehicle maintenance and alignment.
Consistent height holding: Unlike hydraulic jacks that can slowly drift due to fluid leaks, a mechanical screw jack holds its position indefinitely without power.
Low maintenance: They are typically grease-filled and do not have the fluid leakage risk associated with hydraulic systems.
Comparison with hydraulic jacks
While hydraulic jacks can lift faster and have a very high maximum capacity, worm gear screw jacks are often preferred in vehicle ramps and lifts for their superior safety and stability.
Compared to hydraulic jacks, worm gear screw jacks offer superior safety by holding their position without power due to their self-locking design, whereas hydraulic jacks risk drifting or failure from seal degradation or leaks. Screw jacks also provide excellent precision for fine adjustments and exact positioning, while hydraulic jacks are less precise due to fluid compressibility and potential drift. Although hydraulic jacks lift faster, worm gear screw jacks have lower maintenance requirements with no fluids to replace, unlike hydraulic jacks which need periodic fluid changes and seal checks.
Comparison of jack types for vehicle lifts
| Feature | Worm Gear Screw Jack | Hydraulic Jack | Ball Screw Jack | Scissor Jack |
| Lifting Mechanism | A worm gear drives an acme (trapezoidal) screw, converting rotational motion into slow, high-torque linear motion. | Uses a hydraulic fluid and a piston to generate force, which is powered by an electric or manual pump. | Uses a ball screw and ball nut assembly, where recirculating ball bearings reduce friction and increase efficiency. | A simple mechanical screw is turned, causing a scissor-like frame to collapse or extend. |
| Speed | Slow, as the high friction and gear ratio prioritize torque over speed. | Very fast, as the pressurized fluid can move the piston quickly. | Fast, due to the low-friction design and high efficiency. | Slow, as it requires manual cranking of a screw to extend the arms. |
| Efficiency | Low, due to the inherent sliding friction of the worm gear design. | High, due to the high-force output relative to the energy input. | High, as the rolling action of the ball bearings significantly reduces friction. | Low, as manual cranking requires a high mechanical effort to lift a heavy vehicle. |
| Holding and Safety | Self-locking; the high friction prevents the screw from back-driving, so it holds the load securely without power. | Not self-locking; requires a mechanical lock or a constant fluid seal to hold a load. Piston drift or seal failure can cause it to lower unexpectedly. | Not self-locking; requires an external brake or motor to hold the load in place. | Relies on the screw's threads to prevent collapse. Less robust than a worm gear screw jack. |
| Precision | Very high, offering excellent positional control for exact height requirements. | Good, but fluid compressibility can affect positional accuracy. | Very high, offering excellent repeatability and accuracy, which is ideal for automation. | Low; adjustments are manual and not designed for fine, repeatable positioning. |
| Maintenance | Low. Typically grease-filled with few wear-prone components, eliminating the risk of fluid leaks. | High. Requires periodic checks for leaks, fluid top-offs, and maintenance of seals and pumps. | Low to moderate. Depends on the operating environment and duty cycle, but more susceptible to damage from contamination than machine screw jacks. | Low. A simple mechanical device that is easy to service. |
| Synchronization | Easy to synchronize multiple jacks with a single motor and driveshaft for uniform, multi-point lifting. | Difficult to synchronize multiple hydraulic cylinders precisely due to variations in fluid pressure. | Can be synchronized but requires a more complex control system than worm gear versions. | Not intended for synchronized, multi-point lifting. |
| Best for Vehicle Lifts | Best for stationary vehicle lifts and ramps. Ideal for applications that prioritize safety, precision, and reliable, long-term load-holding, even if lifting speed is not a priority. | Commonly used in automotive shops. Excellent for applications where speed is a key requirement, though they require more maintenance and a separate locking mechanism for safety. | Best for automated, high-speed applications, such as assembly lines or automated parking systems, where speed and precision are paramount. | Best for emergency use or as a compact, temporary lifting solution for changing a tire. |
