FAQ

    Q What is a Worm Gear Screw Jack?

    A A ‌worm gear screw jack‌, also known as a mechanical worm gear linear actuators, are used to lift, position — such as push, pull, tilt, or roll — and support all types of loads. It is a mechanical device that converts rotational motion into linear motion using a worm gear and screw mechanism. It's commonly used for lifting heavy loads or adjusting height with precision. Key components include a worm gear, a threaded screw, and a nut. When the worm gear rotates, it drives the screw to move linearly, lifting the load capacity from 500 lbs. to 100 tons. It's widely used in industrial, automotive, and aerospace applications due to its reliability and high load capacity. For example, it can lift vehicles for maintenance or adjust aircraft components. If you need more details about specific models or applications, just let me know!

  • What is a Bevel Gear Screw Jack?

    A ‌bevel gear screw jack‌, also known as bevel gear actuators, which is a mechanical lifting system that uses bevel gears to transmit rotational motion from a horizontal input shaft to a vertical screw, converting torque into precise linear displacement. Unlike worm gear designs, bevel gear screw jacks offer multi-axis drive capability and are often chosen for applications requiring synchronized multi-point lifting or integration with motorized systems.
    ‌ Bevel Gear Transmission‌: Angled gear teeth mesh at 90°, enabling compact, right-angle power transfer from a side-mounted motor or hand crank to the vertical screw shaft.
    ‌High Load Capacity‌: Static load ratings range from ‌1000 kg to 20000 kg‌, suitable for heavy industrial and structural applications.
    ‌Self-Locking Mechanism‌: Single-threaded screw design prevents back-driving — the load remains securely held even without power.
    ‌Multi-Axis Output‌: Supports up to ‌three output shafts‌, allowing simultaneous operation of multiple jacks or integration with limit switches, encoders, or braking systems.
    ‌Speed Options‌: Available in ‌single-thread‌ (slow, high-torque) or ‌double-thread‌ (faster, moderate-torque) configurations to match application needs.

  • What are Worm Gear Screw Jacks used for?

    Worm Gear Screw Jacks are versatile and commonly found in industrial applications, manufacturing, and machining. They have a high loadbearing-to-effort ratio and the ability to easily adjust heights by turning a screw, either automatically or manually, providing high reliability and synchronization capabilities to the operator. An advantage of our industrial screw jacks is that they can be used in tandem to mechanically lift and lower at the same speed. Some examples of applications where screw jacks are used include:
    1. Lifting stage, Adjustment the height of Operating table and swimming pool.
    2. Height adjustment of roller systems on a conveyor system.
    3. Lifting and lowering of Sluice gates.
    4. Adjustment of satellite dishes. Adjustment for solar plant stand.
    5. Stamping fastening device lifting platform, rolling devices, Test instrument lifting platform.
    6. Opening and closing of high temperature furnaces.
    7. Adjustment the height of plastic containers blown machinery mound.
    8. De molding of cast concrete models or molds.
    9. Flapper adjustments, Transport pipes or plate position adjustment.
    10. Adjustment thin film thickness of plastic machine.

  • What lead error is present in the lifting screw threads of screw jack

    Lead error in a screw jack is the difference between the actual linear distance traveled and the theoretical distance calculated based on the screw's lead. This error is cumulative over the length of the screw but typically does not impact the general operation of the actuator.
    Standard industrial screw jack models typically exhibit the following lead error values:
    Typical Lead Error by Screw Type
    Machine Screw Jacks (Acme Threads): Standard rolled acme threads typically have a lead accuracy of ±0.004" per foot (0.10 mm per 300 mm). Some heavy-duty or anti-backlash models may specify errors up to 0.0008" per inch.
    Ball Screw Jacks: Rolled ball screws generally share the same standard accuracy of ±0.004" per foot (±0.10 mm per 300 mm). High-precision positioning ball screws may have tighter tolerances, while some models allow up to 0.003" per inch for general transport.
    Types of Lead Errors
    Progressive (Cumulative) Error: A steady increase or decrease in lead over the entire length of the screw.
    Local Error: Variations in the distance between corresponding points of threads in specific sections.
    Periodic Error (Lead Wobble): Variations that recur within equal intervals, typically every single turn of the screw.
    Minimizing Lead Error for Precision
    For applications requiring high synchronicity between multiple jacks:
    Matched Lead Sets: Manufacturers can factory-select and supply "matched lead" sets where multiple lift shafts are selected with nearly identical lead error patterns.
    Higher Precision Grades: For ball screws, grades such as C3 or C5 provide significantly lower lead deviation.
    Lead Compensation: Some systems use software compensation to account for known lead errors or thermal growth during operation.

  • How much backlash is there in the worm gear screw jack

    In a worm gear screw jack, backlash—the "play" or lost motion between mating components—occurs in two primary areas: between the worm shaft and worm gear, and between the lifting screw and its drive nut (or ball nut).
    Standard Backlash Values (New Units)
    Typical backlash values for new standard screw jacks are:
    Axial Backlash (Endplay): This is the vertical movement of the screw within the nut.
    Machine Screw Jacks: Typically ranges from 0.003" to 0.020" (approx. 0.08mm to 0.5mm) depending on the jack size.
    Ball Screw Jacks: Typically lower, ranging from 0.004" to 0.016" total backlash.
    Worm-to-Gear Backlash: This is the rotational play in the input shaft.
    Measured in degrees of worm rotation, it is typically between ±1° and ±5° depending on the gear ratio.
    Lateral Backlash (Radial Play): The side-to-side movement between the screw and its guide ring is typically around 0.008" (0.2mm).
    Solutions for Reduced Backlash
    If your application requires higher precision or involves reversible loads (shifting between tension and compression), several options are available:
    Anti-Backlash Machine Screw Jacks: These feature a split-nut design that allows you to adjust the internal clearance. These can reduce axial backlash to as little as 0.0005" (0.013mm).
    Preloaded Ball Nuts: For ball screw jacks, a preloaded nut can be used to achieve zero axial backlash by eliminating the clearance between the balls and the raceway.
    Adjustment Limits: It is important not to eliminate backlash entirely (unless using a preloaded ball nut), as some clearance is required to prevent binding and ensure proper lubrication.
    Performance Over Time
    Backlash is expected to increase as the jack wears. Field data indicates that backlash typically increases by 5–15% in the first year of operation and can reach 1.5 times the original specification after 3 to 7 years of steady use. Proper lubrication can slow this progression by roughly 20%.

  • Is the worm gear screw jack unit suitable for low temperature operation

    Worm gear screw jacks are suitable for low-temperature operations, but standard models typically require modifications once ambient temperatures drop below -20°F (-29°C) or 0°F (-18°C), depending on the manufacturer.
    Operating Temperature Ranges
    Standard Operation: Standard units are generally rated for temperatures as low as -20°F (-29°C) to 0°F (-18°C) using factory-supplied grease and materials.
    Low-Temperature Operation: With specific modifications, screw jacks can operate in environments as cold as -40°F (-40°C) or lower.
    Storage: Most standard units can be safely stored in temperatures as low as -65°F (-54°C) without damage.
    Essential Low-Temperature Modifications
    If the application involves sustained temperatures below 0°F, the following updates are often necessary:
    Low-Temperature Lubricants: Standard grease becomes too viscous (thick) in extreme cold, increasing input torque requirements. Specialized low-temperature greases are used to maintain efficient movement.
    Seal Materials: Standard seals may become brittle and crack. Upgraded seal materials ensure they remain flexible enough to prevent lubricant leaks.
    Material Selection: Standard materials can become "notch sensitive" and brittle at sub-zero temperatures. For applications involving potential shock loads, special alloys or heat-treated materials may be required to prevent structural failure.
    Hardware and Fasteners: Stainless steel fasteners are often used in cold environments to prevent corrosion and maintain structural integrity.
    Protective Boots: Bellows boots should be made from materials that remain flexible in the cold to avoid tearing during travel.
    Performance Considerations
    Increased Input Torque: Cold temperatures can increase the internal resistance of the lubricant, requiring more motor power to start the jack (breakaway torque).
    Moisture Management: In outdoor or fluctuating cold environments, moisture can freeze on the lifting screw. Protective bellows are highly recommended to prevent ice buildup that could jam the mechanism.

  • Is the worm gear screw jack actuator suitable for high temperature operation

    Worm gear screw jacks are generally suitable for high-temperature operations, but standard units require modifications once ambient or housing temperatures exceed specific thresholds.
    Temperature Limits
    Standard Operation: Standard screw jacks can typically operate in ambient temperatures up to 180°F (82°C).
    Housing Temperature Limit: The temperature of the jack housing near the worm gear should not exceed 200°F (93°C). If the housing exceeds this, internal components may fail regardless of the duty cycle.
    Modified Operation: With specific design updates, screw jacks can operate in ambient temperatures ranging from 181°F to 300°F (83°C–149°C).
    Essential High-Temperature Modifications
    If your application exceeds 180°F, the following modifications are typically required:
    High-Temperature Lubricants: Standard grease is replaced with specialized high-temperature grease. For temperatures above 194°F (90°C), lubricant life is significantly limited, and frequent re-greasing or consulting the manufacturer is necessary.
    Seal Materials: Standard seals must be upgraded to materials that maintain performance and flexibility at elevated temperatures to prevent lubrication leaks.
    Bellows Boots: If the jack uses protective boots, they must be made from heat-resistant materials (like heat-stabilized specialized fabrics) to prevent melting or thermal degradation.
    Finish/Paint: Standard enamel paint is often replaced with high-temperature acrylic resin or other heat-resistant coatings that will not degrade or peel.
    Performance Considerations
    Duty Cycle Reduction: High ambient temperatures reduce the jack's ability to dissipate heat generated by its own friction. To prevent overheating, the duty cycle must be lowered (e.g., restricted to below 25% for temperatures near 176°F).
    Ball vs. Machine Screw: In hotter environments, ball screw jacks are often preferred over machine screw jacks because their higher efficiency generates less internal heat, allowing for better performance under thermal stress.
    Specialty Models: Some manufacturers offer "Anode Jacks" specifically engineered for extreme high-temperature environments, such as those found in aluminum smelting.

  • Is the torque of a rotating screw jack the same as a standard translating screw jack

    Yes, for a given load and model size, the input torque required for a rotating screw jack is the same as that for a translating screw jack.
    While their internal mechanical movement differs—one moves the screw through the gearbox while the other rotates the screw to move a nut—the efficiency, gear ratios, and fundamental mechanics that determine torque remain identical between the two designs.
    Key Torque Considerations for Both Models
    Proportional to Load: For both types, torque requirements increase proportionally with the weight of the load.
    Static vs. Running Torque: "Breakaway" torque (the force needed to start moving) can be 2 to 3 times higher than the running torque due to initial friction.
    Friction and Efficiency: The primary driver of torque difference is the screw type rather than the configuration. A ball screw jack (whether rotating or translating) requires up to two-thirds less input torque than a machine screw jack of the same capacity due to its higher efficiency.
    Keying Impact: If a translating jack is "keyed" for non-rotation using a square tube, the required input torque may increase by approximately 8% due to the added friction.

  • Will the screw jack drift after the motor is switched off

    A screw jack will drift after the motor is switched off unless a brake of sufficient capacity is used or the specific model is inherently self-locking.
    Factors Influencing Drift
    Motor Inertia: Even after power is cut, the momentum (inertia) of the motor's rotor causes the screw to continue turning momentarily.
    Input Speed: Drift increases significantly with speed. For example, an input of 1500 RPM typically results in 35mm to 60mm of drift, whereas a 1000 RPM input results in about half that amount. The drift distance varies as the square of the velocity (RPM).
    Load Weight: Heavier loads can increase drift, particularly in systems with high mechanical efficiency.
    Drift by Jack Type
    Ball Screw Jacks: These are highly efficient and fundamentally not self-locking. Because of their low internal friction, they will slide backward (backdrive) easily under load once power is lost. A brake motor is always required to hold position.
    Machine Screw Jacks: These are often self-locking due to higher friction in their threads. They generally hold their position without a brake if the gear ratio is 20:1 or greater and there is no significant vibration. However, they may still experience some initial drift from motor inertia before the friction stops the movement.
    How to Prevent Drift
    Magnetic Brake Motors: The most common method to control drift is using a motor equipped with a magnetic brake to immediately lock the input shaft when power is removed.
    Gearbox Reductions: Using a reduction gearbox between the motor and the jack can reduce the impact of motor inertia on the final screw movement.
    Higher Gear Ratios: Selecting a jack with a higher internal ratio (e.g., 24:1 or 32:1) increases internal resistance, helping to stop motion faster.

  • Can the screw jack unit be used where vibration is present

    Yes, screw jack units can be used in environments where vibration is present, but specific design precautions are necessary to prevent the unit from "creeping" or "inching" down under load.
    Factories highlight the following considerations for using screw jacks in high-vibration applications:
    1. Selection by Screw Type
    Machine Screw Jacks: These are generally preferred for vibration-heavy environments. They are quieter because they lack recirculating balls and are less sensitive to external movement than ball screws.
    Ball Screw Jacks: These are highly susceptible to vibration-induced backdriving due to their low internal friction. They always require a brake motor to hold position if vibration is present.
    2. Preventing Creep and Backdriving
    Vibration can overcome the natural friction of a screw, causing it to lose its self-locking property.
    Worm Gear Ratios: For slight vibration, designers should select higher worm gear ratios (e.g., 20:1, 24:1, or 32:1), which increase the resistance to backdriving.
    Magnetic Brake Motors: If vibration is considerable, the unit should be equipped with a drive motor containing a magnetic brake to lock the screw in place when the motor is off.
    Anti-Backlash Devices: These can be added to machine screw jacks to minimize the "play" or free movement between the lifting screw and the nut, which helps stabilize the load against vibratory forces.
    3. Critical Speed and System Stability
    Vibration isn't just an environmental factor; it can also be induced by the jack itself if operated incorrectly:
    Critical Speed: Operating a screw at speeds near its "critical speed" will cause it to vibrate or whip, potentially leading to system failure.
    Resonance Mitigation: In complex 2026 industrial setups, vibrations are sometimes avoided by increasing the moment of inertia at the free end of the screw or by reducing the axial stiffness of the screw assembly.
    Summary Recommendations
    Light Vibration: Use a machine screw jack with a high gear ratio (e.g., 24:1).
    Significant Vibration: Use a brake motor regardless of the jack type to guarantee the load remains stationary.
    Shock Loads: If the vibration includes sudden impacts (shocks), increase the jack's rated capacity by a safety factor of 1.5 to 3.0.

  • Is the screw jack self-locking

    Whether a screw jack is self-locking depends primarily on its design, specifically the type of screw and gear ratio used.
    Machine Screw Jacks
    Most machine screw jacks (Acme/trapezoidal) are inherently self-locking in the absence of vibration.
    Mechanism: Their low efficiency (30%–40%) and sliding friction create enough resistance to prevent the load from "backdriving" the screw when power is removed.
    Key Condition: They typically require a gear ratio of 20:1 or greater and a single-start screw to be considered fully self-locking.
    Limitations: Vibration, extreme temperatures, or certain lubricants can reduce friction enough to cause a "self-locking" jack to creep or slip. In critical applications, a brake motor is still recommended for safety.
    Ball Screw Jacks
    Ball screw jacks are never self-locking.
    Mechanism: Because they use recirculating balls to achieve high efficiency (up to 90%), they have very low rolling friction.
    Requirement: An axial load will easily backdrive a ball screw jack. Therefore, they always require a brake motor or external holding mechanism to maintain a position under load.

  • Will the screw jacks withstand shock loads

    Screw jacks are not typically designed to withstand high shock loads or extreme vibrations in standard configurations. Sudden impacts can damage internal components like the drive sleeve, lifting screw, or bearings.
    However, they can handle shock loads if proper design safety factors are applied during selection:
    Key Design Considerations for Shock Loads
    Safety Factors: For applications with shock loads, manufacturers recommend increasing the rated capacity of the jack using a coefficient:
    Light shock: Use a safety factor of 1.3 to 1.5.
    Severe shock/Heavy vibration: Use a safety factor of 1.5 to 3.0.
    Peak Load Limit: The peak shock load must never exceed the jack's rated capacity. For accidental overloads, most jacks can temporarily sustain up to 10% for dynamic loads and 30% for static loads without damage.
    Special Components: Some models can be fitted with solid thrust bearings specifically for environments where constant vibration and shock are present.
    Machine vs. Ball Screw Jacks in Shock Environments
    Machine Screw Jacks: Generally better for high static loads and intermittent use. Their high friction provides a more stable, self-locking support that is less sensitive to backdriving during light vibration.
    Ball Screw Jacks: Less suited for high-shock environments. Because they have very low friction, shock loads can cause them to backdrive more easily, making a high-quality brake motor essential.
    Important Safety Note: If a jack is subjected to an abnormal shock load, it should be immediately inspected for defects and tagged out if necessary until repairs are made.

  • Can stop discs, stop pins or stop nuts be used on the screw jack unit

    Yes, stop discs, stop pins, and stop nuts can be used on screw jack units, but they serve different primary functions depending on whether the jack is manual or motorized.
    Stop Discs
    Purpose: Primarily used on ball screw jacks to prevent the lifting screw from running out of the ball nut during shipping and handling.
    Constraint: They are not "power stops" and should not be used as a mechanical limit during motorized operation.
    Stop Pins and Stop Nuts
    Manual Operation: Highly recommended for hand-operated units to provide a physical end-of-travel limit.
    Motorized Operation: Known as "full power stop nuts", these are only intended for emergency use.
    Risk: If a motor drives the jack into a stop nut at full power, it can jam the unit so tightly that disassembly is required to free it.
    Damage: Engaging a mechanical stop under motor power can damage the internal gears or the jack housing due to the high stall torque of electric motors.
    Important Safety and Design Notes
    Use Limit Switches: For automated or motorized systems, limit switches should always be the primary method for controlling travel.
    External Stops: It is generally recommended to fit external mechanical stops where possible rather than relying on internal jack stops.
    Torque Limiters: Stop pins or nuts may be safer to use if the system includes a slip clutch or torque limiting device to prevent over-torquing upon contact.

  • Can bellows boots be supplied for a worm gear screw jack model with inverted screw

    Yes, bellows boots can be supplied as an option for a worm gear screw jack model with an inverted lifting screw. These boots protect the screw from contaminants like dust and dirt and help maintain proper lubrication.
    Design and Installation Considerations
    When incorporating a bellows boot with an inverted screw jack, specific design modifications and installation steps are required:
    Lifting Screw Length: Allowance must be made in the total length of the lifting screw to accommodate both the closed (retracted) height of the boot and the thickness of the structure to which it is mounted.
    Attachment to Structure: Since the jack's manufacturer cannot make provisions for attaching a boot to the underside of your supporting structure, you may need to weld or bolt a circular plate (similar to a standard top plate) to your structure. This provides a suitable surface to clamp the end of the bellows boot.
    Mounting Arrangement: Bellows boots for translating screw jacks are designed with end cuffs that fit standard end fittings (top plate, clevis end, etc.). For the inverted configuration, one cuff attaches to the moving end of the screw and the other to the mounting plate on your structure.
    Guides: For long travel lengths (e.g., exceeding 600mm), guides are recommended to keep the bellows boot centered and prevent sagging.
    Materials
    Standard bellows are typically made from durable materials designed for industrial environments, such as:
    Neoprene-coated nylon: Offers resistance to oil, water, and weather, with a typical operating range of -15° to +80°C (according to SIJIE Industrial).
    Hypalon-coated nylon: Provides additional resistance to ozone and acids.
    By adding bellows boots, you can significantly extend the life of your screw jack system by protecting critical components from environmental damage.

  • what is a motorized worm gear screw jack

    A motorized worm gear screw jack is a mechanical linear actuator that integrates an electric motor with a worm gear assembly to automate the lifting, lowering, or positioning of heavy loads.
    Core Components and Operation
    Electric Motor: The primary power source, typically connected to the jack via a motor flange or adapter. Common motor types include three-phase AC, DC, stepper, or servo motors for precision control.
    Worm Gear Assembly: Consists of a worm shaft (the input from the motor) and a worm gear (the internal wheel). The motor rotates the worm shaft, which then drives the worm gear.
    Lifting Screw: A threaded rod (Acme or Ball screw) that converts the gear's rotary motion into linear travel.
    Translating vs. Rotating Design:
    Translating: The internal gear acts on the screw to move it up or down.
    Rotating: The screw rotates in place to move a traveling nut linearly along its length.
    Key Benefits
    Automation: Allows for remote or computer-controlled height adjustments in automated machinery.
    Synchronization: Multiple motorized jacks can be linked together using connecting shafts to lift unevenly distributed loads at the exact same speed.
    High Load Capacity: Modern models can handle loads ranging from 0.25 tons to 250 tons.
    Precision: Motorized systems can move loads to exact positions at preset speeds, offering better accuracy than manual systems.
    Common Applications
    Motorized screw jacks are used as high-reliability alternatives to hydraulic or pneumatic systems in various sectors:
    Industrial: Platform lifts, food processing machinery, and conveyor adjustments.
    Infrastructure: Opening and closing dam penstocks or supporting bridges during repair.
    Renewable Energy: Accurate positioning of large solar tracking arrays.
    Entertainment: Stage setup and lift table applications for theaters.

  • what is a manual screw jack lift mechanism

    A manual screw jack lift mechanism is a mechanical linear actuator that uses human effort—applied through a handwheel or crank—to lift, lower, or position heavy loads. These mechanisms remain vital for applications where electricity is unavailable, hazardous, or unnecessary for low-duty cycles.
    Core Components
    A standard manual screw jack consists of four primary internal parts housed within a rigid casing:
    Worm Shaft (Input): The horizontal shaft where the handwheel or crank is attached. Turning this shaft starts the movement.
    Worm Gear (Drive Sleeve): A wheel that rotates as the worm shaft turns. It acts as the "nut" in many configurations.

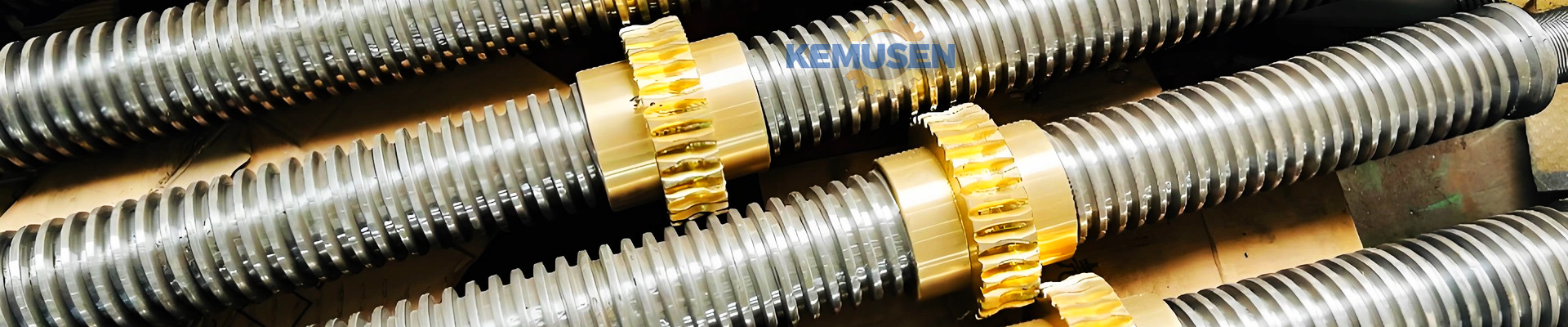

    Lifting Screw (Lead Screw): A threaded rod (typically an Acme/trapezoidal screw) that moves linearly as the internal gear rotates.
    Gear Housing: A cast iron or steel enclosure that protects the internal gears and provides mounting points.
    How It Works
    Input Torque: An operator rotates a handwheel or hand crank.
    Mechanical Advantage: The rotation of the worm shaft drives the worm gear. The gear ratio (e.g., 20:1) multiplies the input force, allowing a person to lift several tons with relatively little physical effort.
    Linear Motion: The rotating worm gear forces the lifting screw to move up or down (in translating models) or drives a nut along a fixed rotating screw.
    Self-Locking Safety: Most manual jacks use Acme screws, which are inherently self-locking. This ensures the load stays in place without a brake when the operator stops turning the handle.
    Key Applications
    Manual screw jacks are preferred for intermittent positioning and emergency backup systems:
    Industrial Adjustments: Height adjustment for work tables, conveyor platforms, and saw blade tensioning.
    Construction & Maintenance: Leveling heavy machinery, supporting building beams, or adjusting sluice gates.
    Emergency Overrides: Providing a manual backup for motorized systems in case of power failure.
    Precise Positioning: Frequently paired with digital position indicators to show the exact lift height based on the number of handle turns.

  • What’s the difference between ball screw jacks and machine screw jacks

    The choice between machine screw jacks and ball screw jacks remains a critical design decision based primarily on speed, duty cycle, and the need for self-locking safety.
    Key Differences Defined
    Self-Locking vs. Backdriving: Machine screw jacks are often "self-locking," meaning they safely hold an axial load without external braking forces when the drive is off. Ball screw jacks, due to their ultra-low friction, can easily "backdrive" (slide backward under a load), making a motor brake essential for safety.
    Predictability and Lifespan: Ball screw jacks have highly predictable lifecycles calculated using the L10 standard, which estimates the dynamic life of the bearing balls. Machine screw lifespans are harder to predict because they rely on the wear rate of the frictional threads.
    Energy Consumption: Because ball screw jacks are nearly 95% more efficient at reducing friction than machine types, they require significantly less motor horsepower to move the same load.
    Environmental Resistance: Machine screw jacks are typically more resistant to particulates and harsh environments, making them better suited for mills or woodworking areas. Ball screw jacks are more sensitive to contamination and typically require protective bellows or specific lubrication.

    Ball screw jacks differ from machine screw jacks in a few key ways. Machine screw jacks are typically used to move heavy loads in low-duty-cycle setups and low-speed applications. Because it uses an acme screw it can (in some cases) self-lock to resist backdriving as well — meaning it will hold position without the presence of power or a mechanical brake.
    In contrast, ball screw jacks are common where higher speeds and duty cycles are needed. In addition, because of the higher efficiency of the ball screw (compared to a machine screw) ball screw jacks can decrease motor horsepower and other electrical requirements.
    There are two basic types of screw jacks of which a few additional styles originate. First, there are translating screw jacks. These types of screw jacks use a lift shaft or screw that travels into or out from the worm gear box. The lift shaft can either protrude from the mounting flange side of the gearbox or from the top side of the worm gear box. Secondly, are rotating type screw jacks. In this style, the lift shaft remains stationary and a lifting nut moves along the lift shaft. Much like the translating screw jacks the screw can also protrude down from the mounting flange or up from the top of the jack. To produce translation of the lift shaft or nut, both configurations must be secured to prevent rotation. Where this is unfeasible, keyed screw jacks are an option.

  • What are the main design differences between acme and ball screws

    The main design differences between Acme (machine) screws and ball screws center on how they handle friction and move loads.
    1. Friction and Movement Mechanism
    Acme Screw (Sliding Friction): Uses a trapezoidal thread design where the nut slides directly along the screw threads. This "surface-to-surface" contact creates high friction, similar to a standard nut and bolt.
    Ball Screw (Rolling Friction): Features helical raceways filled with recirculating ball bearings that roll between the nut and the screw. This eliminates direct contact between the nut and shaft, significantly reducing friction.
    2. Efficiency and Power Requirements
    Acme Screw: Operates at low efficiency, typically 20% to 40%. Because so much energy is lost to heat through friction, they require higher motor torque to move the same load as a ball screw.
    Ball Screw: Highly efficient, often reaching 90% or greater. This high efficiency allows for smaller motors and lower power consumption.
    3. Load Holding and Safety
    Acme Screw: Inherently self-locking in most vertical applications because high internal friction prevents the load from "back-driving" the screw when power is removed.
    Ball Screw: Generally not self-locking. Due to low friction, heavy loads can easily back-drive the system, requiring an external braking mechanism for safety.
    4. Precision and Backlash
    Acme Screw: Experiences more wear over time, which can lead to increased backlash (play between the nut and screw). They are best for applications where precision is not the primary concern.
    Ball Screw: Offers higher precision and more consistent backlash over its lifespan. They are the standard for high-performance CNC machinery and robotics.
    5. Maintenance and Life Cycle
    Acme Screw: Shorter life cycle due to constant sliding wear. However, they are more resistant to harsh environments and contamination from dust or debris.
    Ball Screw: Longer, more predictable service life (calculated via the L10 standard) due to minimal wear. They are sensitive to dirt and usually require protective bellows or seals.

  • Compare machine screw jacks and ball screw jacks for heavy-duty applications

    For heavy-duty applications, the choice between machine screw jacks and ball screw jacks depends heavily on the duty cycle and speed requirements, as both can handle significant loads. Machine screw jacks are best for static loads and low-to-moderate, intermittent use due to their self-locking ability and high friction, while ball screw jacks are ideal for dynamic loads, high speeds, and continuous use due to their high efficiency.
    Machine Screw Jacks
    Load Handling: Excellent for high static loads, such as supporting bridges for extended periods. They can also handle dynamic loads, but with lower efficiency.
    Duty Cycle & Speed: Best for low to moderate duty cycles (around 25% max) and slower travel speeds due to heat generated by friction.
    Efficiency: Lower efficiency (typically 30-40%) due to metal-on-bronze sliding friction.
    Self-Locking: Most are inherently self-locking, meaning they will hold a vertical load in place without a brake motor, which is a major advantage for safety and simpler system design.
    Environment: More resistant to contamination like airborne particulates and are quieter in operation.
    Cost: Generally less expensive than ball screw jacks.
    Lifecycle: Difficult to predict the exact lifecycle due to the nature of frictional wear.
    Ball Screw Jacks
    Load Handling: Handle heavy dynamic loads with frequent cycles very well due to reduced friction.
    Duty Cycle & Speed: Ideal for higher duty cycles (around 35% max) and faster operation.
    Efficiency: Highly efficient (typically up to 90%) because they use rolling balls to reduce friction, requiring less motor horsepower.
    Self-Locking: Not self-locking; they require an external brake or holding mechanism (which adds cost and complexity) to prevent the load from back-driving or sliding backward when power is removed or the system is idle.
    Environment: Less tolerant of contaminants and typically need better lubrication and maintenance.
    Cost: More expensive upfront cost.
    Lifecycle: The operational lifespan can be accurately calculated using the L10 standard, which helps with predictive maintenance.

  • Can a worm gear screw jack model with an inverted lifting screw be keyed

    Yes, a worm gear screw jack with an inverted lifting screw can be keyed. This "keyed for non-rotation" feature is standard for both upright and inverted translating screw jacks.
    How Keying Works in Inverted Models
    Mechanism: A keyway is machined along the entire length of the lifting screw. A matching key is fixed to the jack's shell cap or housing.
    Function: As the internal worm gear rotates, the key prevents the lifting screw from turning with it, forcing the screw to move linearly.
    Mounting Changes: For inverted models, adding a key often requires omitting the standard dust guard, as the key is typically mounted where the guard would attach. Specialized adapters can be used if both a key and a dust guard are required.
    When to Use a Keyed Inverted Jack
    Single Jack Applications: Necessary when the load is free-hanging or not otherwise restrained from rotating.
    Unguided Loads: Essential if the lifting screw is not bolted to a structure that provides its own guidance.
    Precision: Ensures the screw moves only vertically without any rotational "drift".
    Key Trade-offs
    Increased Wear: The keyway reduces the contact area between the screw and the internal worm gear threads, which can lead to faster wear and a slightly reduced service life.
    Efficiency: Keying can increase required input torque by approximately 8% due to the added friction of the key in the keyway.

  • Why is it ever necessary to use a keyed lifting screw jack?

    A keyed (anti-rotation) lifting screw jack is necessary whenever a load or structure cannot naturally prevent the lifting screw from spinning. In a standard translating screw jack, friction between the internal worm gear and the screw naturally tries to rotate the screw; without an anti-rotation mechanism, the screw will simply spin in place instead of moving up or down.
    Critical Scenarios Requiring a Keyed Jack
    Single-Jack Applications: When only one jack is used and its lifting screw is not bolted to a guided load, the screw will rotate with the worm gear rather than translating linearly.
    Unguided or Free-Standing Loads: If the load is not held in place by external guide rails or a square tube, it may rotate or pivot on the screw end, necessitating an internal key to ensure vertical travel.
    Intermittent Load Contact: A keyed jack is essential for applications where the lifting screw must extend to meet a load to which it is not permanently attached.
    Precise Positioning Requirements: In industrial automation, keyed jacks are used to eliminate even minor rotational deviations, ensuring absolute linear accuracy.
    Key Mechanisms by Jack Type
    Machine Screw Jacks: These typically use a physical key and keyway milled into the screw's length to block rotation.
    Ball Screw Jacks: Because a standard keyway would interrupt the ball track, these units utilize a square guide block attached to the end of the screw that travels inside a square protection tube to prevent rotation.
    Design Considerations
    Increased Wear: The presence of a keyway in the screw can cause higher-than-normal wear on the internal drive sleeve threads, which may slightly reduce the jack's overall lifespan.
    Usage Recommendations: Anti-rotation devices are generally suggested for systems with limited strokes and low operating speeds to minimize internal friction and wear.

  • Can the lifting screw of screw jacks be keyed to prevent rotation?

    The lifting screw of a translating screw jack can be keyed to prevent rotation. This configuration, known as a keyed screw jack or anti-rotation screw jack, is essential in 2026 for specific industrial applications where the load cannot naturally stop the screw from spinning.
    When to Use a Keyed Screw Jack
    Unguided Loads: Use it when a single jack must lift a free-standing load that is not attached to any external guide rails.
    Intermittent Contact: Ideal for scenarios where the screw must extend to meet a load rather than being permanently bolted to it.
    Precision Requirements: Necessary when rotational deviation must be eliminated for exact linear positioning.
    How Anti-Rotation is Achieved
    The method for preventing rotation differs based on the type of screw:
    Machine (Trapezoidal) Screw Jacks: A longitudinal keyway is milled along the length of the lifting screw. A matching key is fixed to the jack's housing or shell cap, forcing the screw to move linearly without spinning.
    Ball Screw Jacks: Standard keying is rarely used for ball screws because a keyway would interrupt the ball track and cause a loss of recirculating balls. Instead, anti-rotation is achieved using a square guide block attached to the end of the screw that slides inside a square stem tube.
    Trade-offs and Limitations
    Increased Wear: Keyed screws typically cause higher-than-normal wear on the internal drive sleeve (worm gear) threads, which can somewhat reduce the jack's operational life.
    Higher Torque: An anti-rotation device increases the required input torque by approximately 8%.
    Speed and Stroke: These devices are generally recommended for low-speed operations and limited stroke lengths to minimize wear and stress.

ABOUT US

SCREW JACKS & LIFTING SYSTEMS

LINEAR ACTUATORS & GEARBOXES

CONTACT US
Address: No.15, Jingfu Road,
Xiabian, Chang'an, Dongguan, Guangdong, China
Phone: +86-137-1229-1184
Copyright © 2025 KEMUSEN MACHINERY CO.,LTD. All Rights Reserved. Sitemap. Privacy Policy
