Screw Jacks Are A Popular Choice for Achieving Height Adjustments in Crank Tables

Screw jacks are a popular choice for achieving height adjustments in crank tables, offering several advantages. Note: Self-locking screw jacks do not require a separate locking mechanism to hold the table at a desired height. However, some worm gear ratios may require an additional locking mechanism to prevent creep, especially when using handwheels.

Advantages of using Screw Jacks for Crank Tables:

* Precise positioning: They allow for fine adjustments to the table height, ensuring accuracy for tasks requiring exact positioning.

* Self-locking: Many screw jacks have a self-locking feature, which means they can hold the load in place without additional braking mechanisms.

* High Load Capacity: Screw jacks can handle significant weight, making them suitable for various table sizes and applications.

* Mechanical Advantage: The screw thread provides a mechanical advantage, allowing users to lift heavy loads with relatively little effort.

* Durability and Reliability: Screw jacks are typically constructed with robust materials and are designed for long service life.

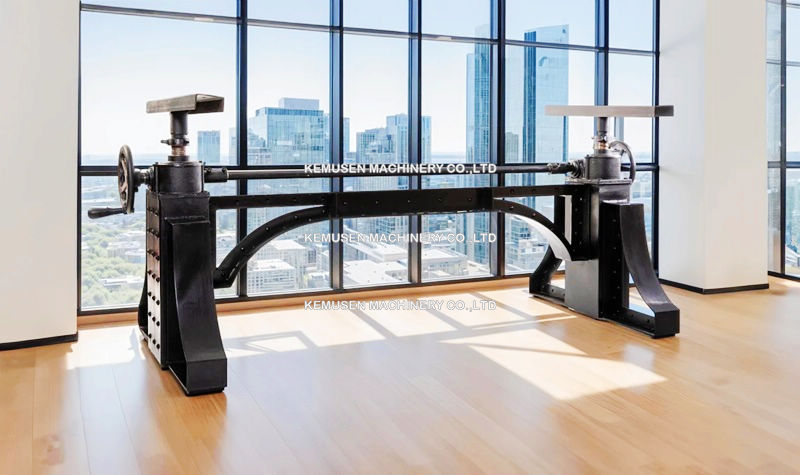

Mechanism for Crank Table Height Adjustment:

* A screw jack uses a worm gear mechanism to convert rotary motion into linear motion.

* The hand crank is attached to the worm screw, which rotates the worm gear.

* This rotation causes the lead screw to move linearly upwards or downwards, raising or lowering the table.

* Multiple screw jacks can be used in tandem with connecting shafts and couplings to provide synchronized lifting.

Design Considerations for Screw Jack Height Adjustable Tables:

* Load Capacity: Select a screw jack with a load capacity suitable for the table and intended use.

* Column Strength: Consider the length of the screw and the possibility of buckling under compressive loads.

* Guidance Support: Screw jacks primarily provide thrust, so a separate guidance system (like shafts or rails) is needed to absorb other loads and ensure stability.

* Duty Cycle: Consider the frequency of operation and choose a screw jack that can handle the required duty cycle.

* Critical Speed: For longer screws, be aware of critical speed, the speed that can cause resonance and vibration.

Components for a Crank Table Lift Mechanism:

* Screw Jacks: Select appropriate screw jacks based on load capacity, travel length, and duty cycle.

* Handwheel: For manual operation.

* Connecting Shafts: To synchronize multiple screw jacks.

* Couplings: To connect the shafts to the screw jacks.
