Screw Jack Lifting Mechanism Is Used in Airport Passenger Walkways (Jet Bridges Or Passenger Boarding Bridges)

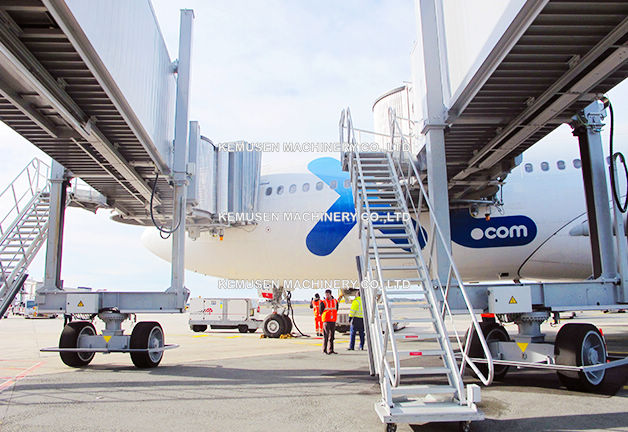

Screw Jack Lifting Mechanism Is Used in Airport Passenger Walkways (also known as jet bridges or passenger boarding bridges) to adjust the height and angle of the ramp, allowing it to align precisely with the doors of various aircraft. These systems provide the precise, controlled, and heavy-duty lifting required for this application.

How the system is used in passenger walkways

Vertical adjustment: Aircraft of different sizes and models have varying door sill heights. The screw jack system provides the vertical movement to raise or lower the walkway's cab, ensuring a seamless and level connection for passengers.

Tilt and alignment: As the aircraft's weight changes during boarding and deplaning, its landing gear struts extend or compress, causing the aircraft's body to move slightly. The worm gear system can be controlled to precisely track this movement, preventing dangerous gaps or height differences.

Synchronization: For larger aircraft that require a dual-door connection, multiple screw jack systems can be synchronized to operate in unison, ensuring the cab of each walkway aligns perfectly with its respective aircraft door.

Key features of the screw jack system

Heavy-duty capacity: These lifting systems are capable of handling significant loads to lift and position the heavy steel and aluminum structures of the walkway.

Precision and synchronization: The worm gear design offers precise, controlled motion, which is critical for smooth and safe alignment with the aircraft. Multiple jacks can be interconnected with drive shafts and gearboxes to maintain perfect synchronization.

Self-locking capability: The inherent self-locking characteristic of many worm gear systems means that once the walkway is positioned, it will hold its position securely without back-driving, a critical safety feature.

Durability and reliability: Airport environments demand components that are durable enough to withstand frequent, repetitive operation and harsh weather conditions.

Motorization and controls: While manual versions exist, passenger boarding bridge systems are motorized and operated by controls inside the cab, with features like anti-collision sensors and emergency stops for safety.

Mechanical synchronization

Multiple screw jack systems are synchronized to ensure that all lifting points move uniformly and at the same rate, which is crucial for safely lifting large, uneven, or heavy loads like airport walkways. This prevents tilting, twisting, or uneven stress on the supported structure. Synchronization can be achieved through both mechanical and electronic methods.

In a mechanical synchronization setup, a single motor drives all the screw jacks in the system through a network of shafts, gearboxes, and couplings. Because all components are mechanically linked, the jacks cannot move independently, ensuring perfect synchronization.

Components:

Single motor: A single electric motor provides the rotational power for the entire system.

Drive shafts: These shafts transmit power from the motor and between the screw jacks. They are made from standard bar stock but can be custom-jointed for longer distances.

Couplings: These connect the drive shafts to the motor and to the input shafts of the screw jacks.

Bevel or miter gearboxes: These components are used to change the direction of the rotational force, allowing the jacks to be arranged in various configurations (e.g., in a straight line, H-shape, or U-shape).

Pros and cons:

Pros: Highly reliable and precise due to the direct mechanical link. It is generally a less expensive solution for multi-ton loads where programmed synchronization isn't required.

Cons: The system can be complex to design and install, especially for layouts that are not linear. Torsional deflection in long drive shafts can also introduce minor performance lags.
