Linked Vertical Lead Screw Jacks Work in Scissor Lifts

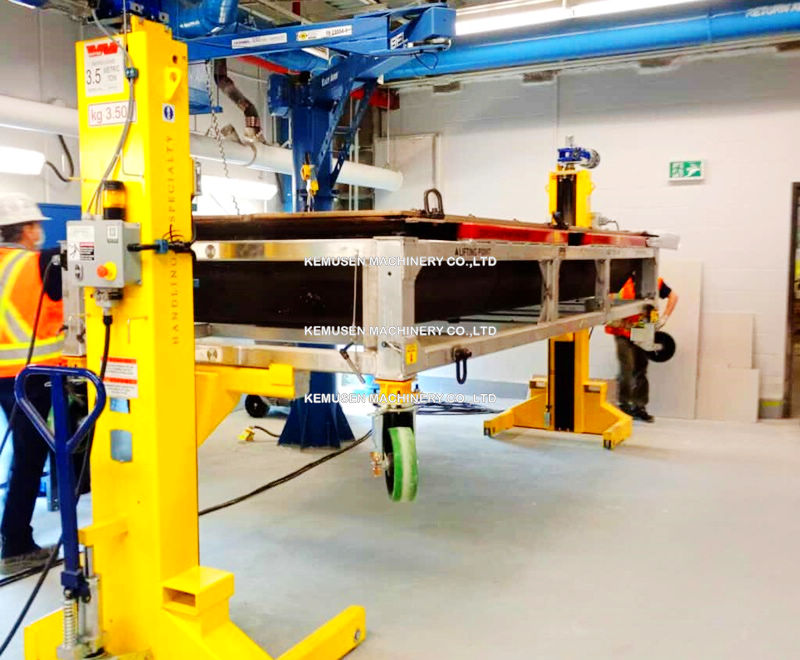

Linked Vertical Lead Screw Jacks Work in Scissor Lifts to provide the precise linear motion needed for lifting and positioning heavy loads. A series of screw jacks can be linked and driven by a single motor to ensure synchronized lifting across the entire platform. This setup provides a safe, reliable, and mechanically synchronized lift compared to single-point hydraulic or manually-operated systems.

How worm gear screw jacks work in scissor lifts

The worm gear screw jack system works by converting the rotational motion from an electric motor or hand crank into linear (push-pull) motion to actuate the scissor mechanism.

Components: The primary components are a worm gear and a threaded screw.

Rotation: A motor rotates the worm, which in turn causes the worm gear to rotate.

Linear movement: The rotating worm gear acts as a nut, causing the lifting screw to move either up or down.

Preventing rotation: For the scissor lift to raise and lower properly, the lifting screw must be prevented from rotating. The lift's base or the multiple jacks attached to the load keep the screw from twisting, ensuring it moves axially.

Key considerations for scissor lift applications

When selecting worm gear screw jacks for a scissor lift, several factors must be considered to ensure optimal performance, safety, and longevity.

Load capacity: The mechanical design of worm gear screw jacks allows them to handle extremely heavy and varying loads. Jacks are available with capacities ranging from 500 pounds to 100 tons. It is crucial to select jacks that can handle the full load in both tension and compression, with an extra safety margin for potential shock loads.
Precise positioning: Screw jacks offer a high degree of control over linear movement, allowing for accurate and repeatable positioning at specific heights. This is often far more precise than hydraulic systems, which can be affected by pressure fluctuations.

Synchronized systems: Multiple worm gear screw jacks can be easily linked together with a common motor, shafts, and bevel gearboxes to ensure synchronized lifting. This is especially important for large platforms or heavy, unevenly distributed loads, where perfectly level lifting is critical for safety. The torsional deflection in the connecting shafts has little effect on the final position of each jack, ensuring reliability.

Self-locking: A major advantage of worm gear jacks is their natural ability to self-lock, which prevents the load from back-driving or "creeping" downwards when the power is removed. This is due to the high friction within the gear mechanism. This eliminates the need for complex external braking systems and provides inherent safety, especially in the event of a power failure.

No hydraulic leaks: Unlike hydraulic scissor lifts, which can develop hazardous fluid leaks and require regular maintenance of fluids, seals, and hoses, worm gear screw jacks are a clean, electromechanical system. This makes them ideal for environments like cleanrooms, food processing plants, or anywhere fluid contamination is a concern.

Durability and longevity: With fewer moving parts than hydraulic systems, screw jacks are known for their long service life and high durability. They require less frequent maintenance, which reduces equipment downtime and lowers overall operating costs.

Operating environment: For harsh environments, such as those with excessive dirt or moisture, jacks can be fitted with protective bellows boots to protect the screw and increase its service life.

Column strength: For long-travel applications, especially those with high compressive loads, the column strength of the lifting screw must be considered to prevent buckling.

Accessories: Motor controls, gear reducers, couplings, and other accessories are available to create a complete and customized lifting system.

Low long-term cost: While the initial investment may sometimes be higher than a simple hydraulic lift, the total cost of ownership is often lower. This is due to reduced energy consumption—power is only used when the lift is moving—and significantly lower maintenance costs.
