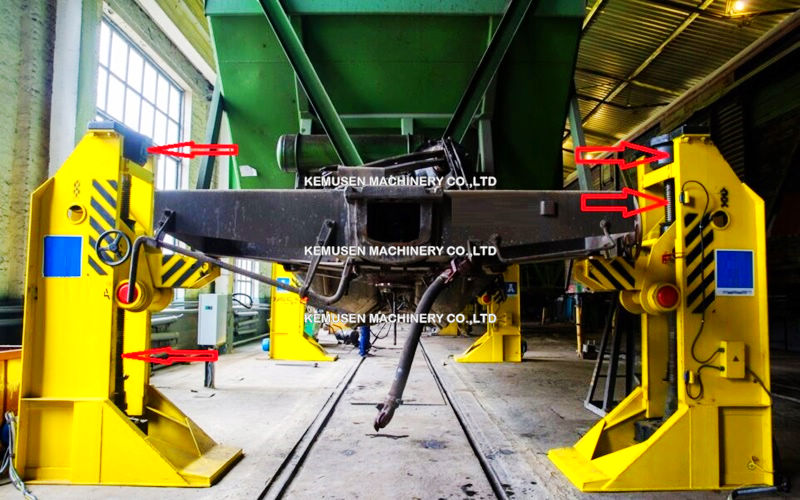

Heavy Duty Electric Railway Lifting Jacks for Trains, Locomotives And Wagons

Heavy-duty electric railway lifting jacks are specialized, high-capacity systems designed for the safe and synchronized lifting of trains, locomotives, and wagons during maintenance and assembly. These jacks are often sold in sets of four or more columns and feature advanced control systems and safety mechanisms.

Benefits and extra features

1. Electromechanical screw jack design with lifting screw-nut system.
2. Self-locking machine screw jack system for operation under the load in case of power failure.
3. Multiple units synchronized screw jacks. When used in a set, the jacks are synchronized to guarantee uniform travel and safety.
4. Electromechanical screw jack hoisting system with ACME thread spindle and brass lifting and safety nuts.
5. Capacities: Available in 25, 50, and 60-ton capacities for heavy applications, with lighter 5-20 ton options for light rail and transit.
6. Portability: Many jacks are designed to be portable, featuring large wheels and handles for easy positioning within a maintenance facility.
7. Accessory: Bellows boots are essential for protecting the lifting screw and internal components from the dirt, dust, moisture, and debris prevalent in railway maintenance environments. When ordering, the bellows boot must be correctly specified to accommodate the required stroke length and mounting style of the specific jack.
