What Materials Are Commonly Used in Manufacturing Screw Jacks

Bevel gear ball screw jacks are engineered for high-speed, high-duty cycle applications. Unlike standard worm gear jacks, they utilize spiral bevel gears to achieve efficiencies of up to 90%. To maintain this performance, manufacturers use high-grade, hardened materials for nearly every internal component. Most spiral bevel gears are made from high-quality alloy steel (such as 20CrMnTi) that is case-hardened, tempered, and lapped in pairs for maximum durability and precision.

Availability:

Quantity:



Inquire Add to Basket

Model:
KMF1T - KMF20T
Brand:
KEMUSEN

Construction and Materials

We supply high-quality materials for bevel gear ball screw jacks. Below is a summary of the various materials used in bevel gear ball screw jack construction.

KME0

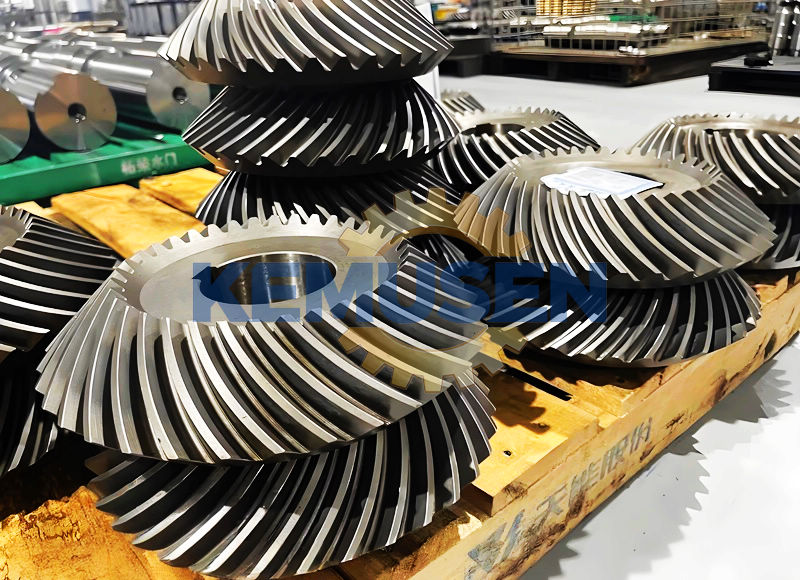

0. Spiral Bevel Gears are lapped together in pairs, high quality alloy steel, case hardened.

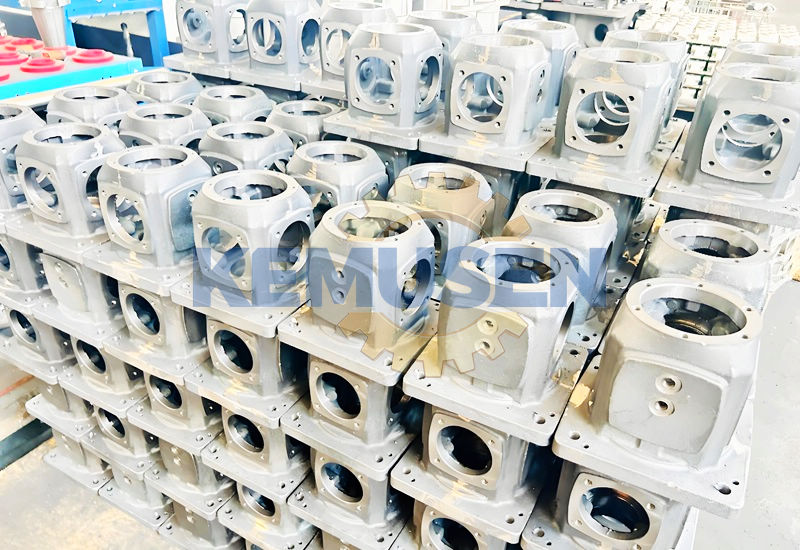

1. Housing is nodular cast iron.

2. Input Shaft is hardened alloy steel. Custom 304 or 316 stainless steel.

3. Internal Drive Sleeve is aluminum bronze.

4. Ball screw is SCM450 alloy steel. Hardness: HRC 58-62.

5. Ball nut is SCM415H alloy steel. Hardness: HRC 58-62.

6. Steel ball is SUJ2 bearing steel. Hardness: HRC 60.

7. Bearing is chromium bearing steel. Custom 304 stainless steel.

KME1

KMB1

Note: Ball Screws and Nuts are made from hardened alloy steel with hardened bearing balls carrying the load between nut and screw.
