KMV065-280, KMVH065-280, KMVF065-280
KEMUSEN

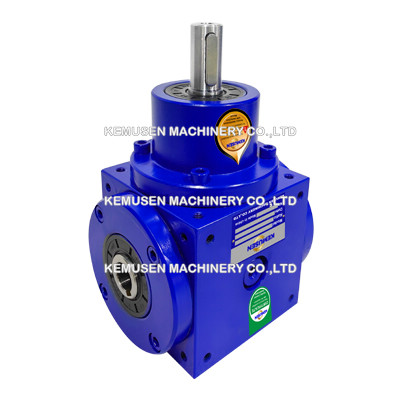

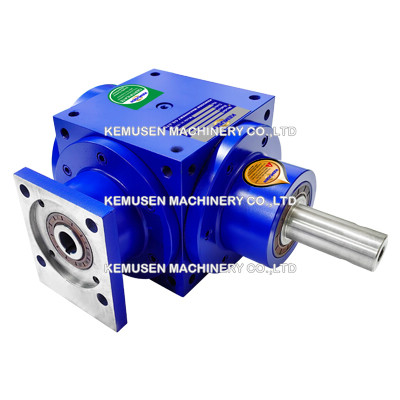

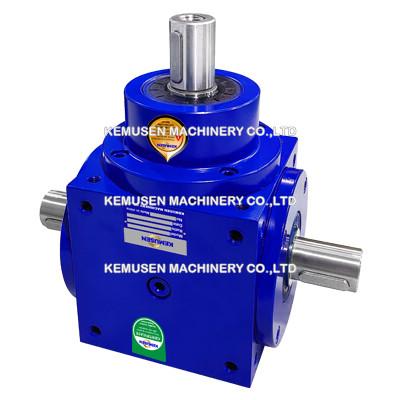

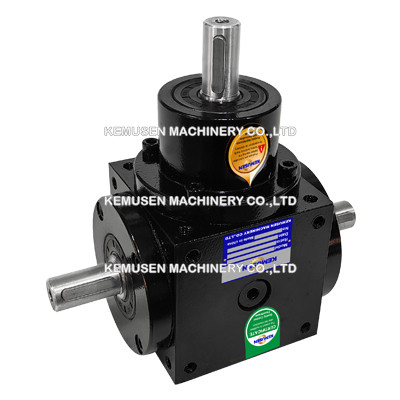

A spiral bevel gearbox is a type of gearbox that uses spiral bevel gears to transmit torque and motion between intersecting axes, typically set at a 90-degree angle. The gears in this setup have teeth that are curved in a spiral pattern, which offers several advantages over straight bevel gears, including smoother and quieter operation. We provide high-quality materials meets international standards, typically produce the best-performing Spiral Bevel Gearboxes. Below is a summary of the various materials used in Spiral Bevel Gearboxes construction.

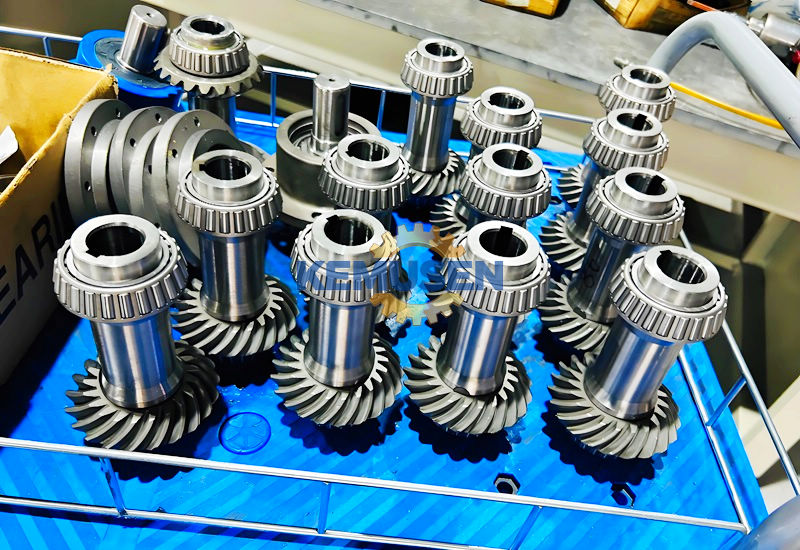

1. Spiral Bevel Gear is high purity rugged alloy steel 20CrMnTi, carburizing process, case hardened and lapped in pairs for intersecting shafts.
2. Input Shaft is hardened and tempered alloy steel 40Cr. Custom 304, 316 stainless steel.
3. Output Shaft is hardened and tempered alloy steel 40Cr. Custom 304, 316 stainless steel.

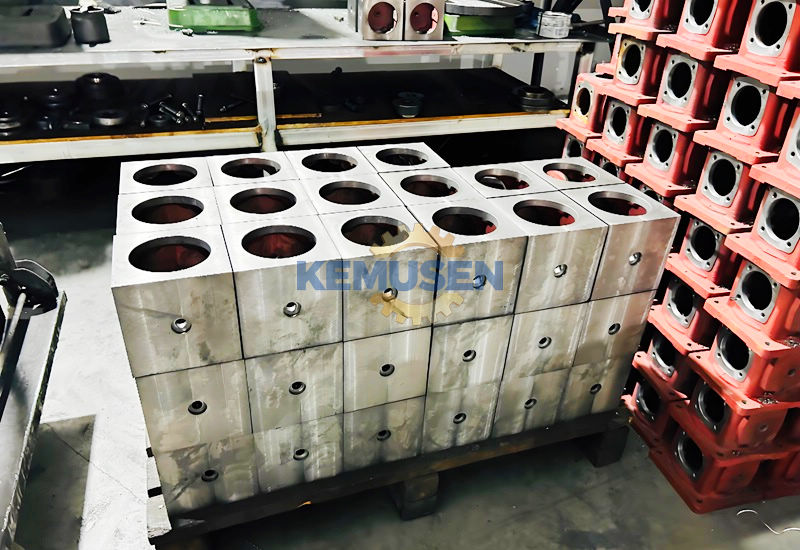

4. Housing is high rigidity cast iron HT250.
5. Bearing is chromium bearing steel. Custom 304 stainless steel.
