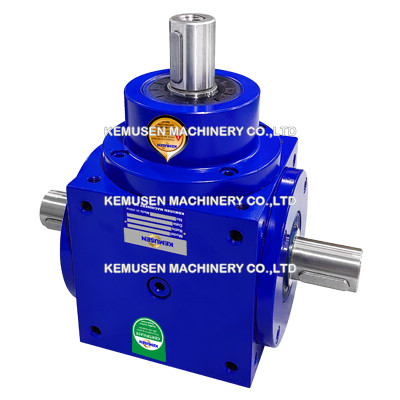

Spiral Bevel Gearbox Torque 70Nm Power 11kW

Spiral Bevel Gearbox Torque 70Nm Power 11kW are often used in hoisting equipment, paper folding machine, entertainment facility, multistory packing structure for transporting pallets. Available in 1:1, 1.5:1, 2:1, 3:1, 4:1 and 5:1 gear reduction ratios. 2-way, 3-way and 4-way configurations, custom 5-way gearboxes. Available in solid shaft and hollow output shaft configurations, and integrated motor adapter design. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 95%. The Spiral Bevel Gearboxes are specifically engineered for use with worm gear screw jacks and actuators in multiple jack systems. You have several linear drives that you would like to connect together – i.e. to synchronize. For economic reasons, you don't want to drive every single linear drive separately with its own electric motor. This is where our bevel gearboxes come into their own.

Product Catalog

Square Bevel Gearbox.pdf

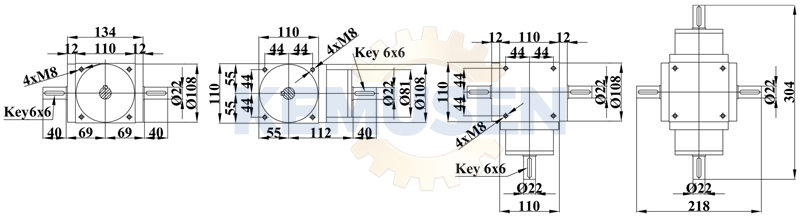

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
