Spiral Bevel Gearbox Torque 600Nm Power 67.5kW

Spiral Bevel Gearbox Torque 600Nm Power 67.5kW allows universal mounting possibilities on every kind of machines. Available in 1:1, 1.5:1, 2:1, 3:1, 4:1 and 5:1 gear reduction ratios. 2-way, 3-way and 4-way configurations, custom 5-way gearboxes. Available in solid shaft and hollow output shaft configurations, and integrated motor adapter design. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 95%. Every component is precision machined, inspected and then carefully assembled. These right angle gear drive boxes are quiet in operation due to the special care taken in manufacturing and assembly. Our 90° miter gearboxes are compact and reliable spiral bevel gear drives precisely designed for a dependable, economical transfer of speed or power.

Product Catalog

Square Bevel Gearbox.pdf

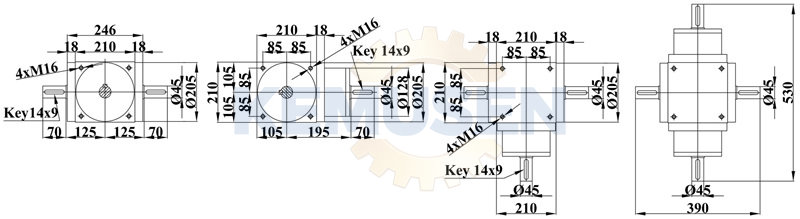

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
