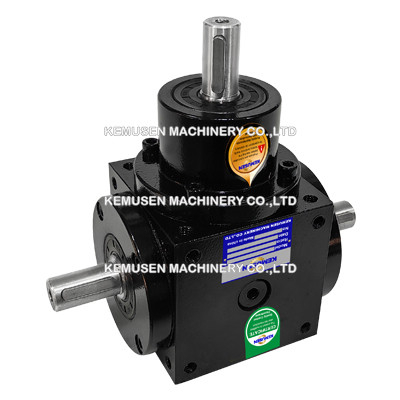

Spiral Bevel Gearbox Torque 280Nm Power 39.2kW

Spiral Bevel Gearbox Torque 280Nm Power 39.2kW are often used in electroplating machinery, folding machines, food processing equipment, transfer machines, chemical mixers and recording equipment. Available in 1:1, 1.5:1, 2:1, 3:1, 4:1 and 5:1 gear reduction ratios. 2-way, 3-way and 4-way configurations, custom 5-way gearboxes. Available in solid shaft and hollow output shaft configurations, and integrated motor adapter design. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 95%. Right Angle Transmission Gearboxes(right-angle gear drive boxes) are designed for dependable, economical transfer of speed or power. Our 90° gear reducers are compact and feature efficient, quiet operating spiral bevel gears.

Product Catalog

Square Bevel Gearbox.pdf

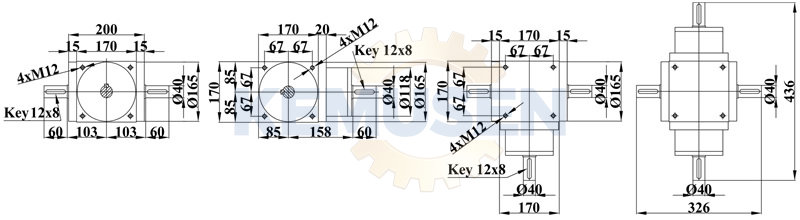

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
