Spiral Bevel Gearbox Torque 150Nm Power 23.9kW

Spiral Bevel Gearbox Torque 150Nm Power 23.9kW are often used in a wide range of applications such as unloaders and unscramblers, blowers and fans, bottle capping and agitator. Available in 1:1, 1.5:1, 2:1, 3:1, 4:1 and 5:1 gear reduction ratios. 2-way, 3-way and 4-way configurations, custom 5-way gearboxes. Available in solid shaft and hollow output shaft configurations, and integrated motor adapter design. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 95%. The spiral bevel gearbox is also known as spiral bevel gear reducers, right angle miter gearbox or 90 degree bevel gearbox. The spiral bevel gear delivers high transmission capacity, high efficiency, high transmission capacity, low backlash, noiseless operation, low running temperature and long service life.

Product Catalog

Square Bevel Gearbox.pdf

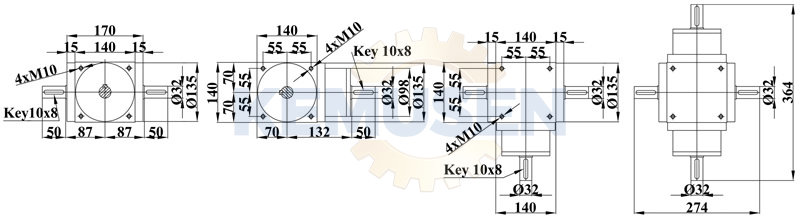

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
