Spiral Bevel Gearbox Torque 1200Nm Power 156kW

Spiral Bevel Gearbox Torque 1200Nm Power 156kW transfers power smoothly and quietly using specially designed hardened spiral bevel gears that turn the input and output shafts. Available in 1:1, 1.5:1, 2:1, 3:1, 4:1 and 5:1 gear reduction ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations, and integrated motor adapter design. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 95%. These 90-degree gearboxes are permanently lubricated and provide a smooth transfer of power with very little noise and no maintenance.

Product Catalog

Square Bevel Gearbox.pdf

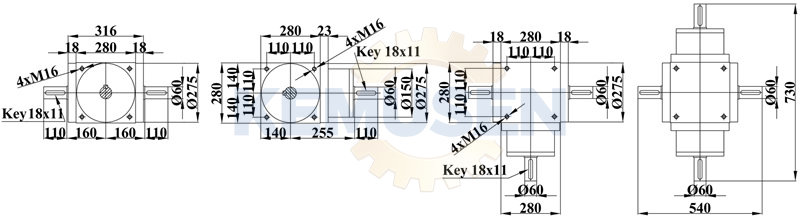

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
