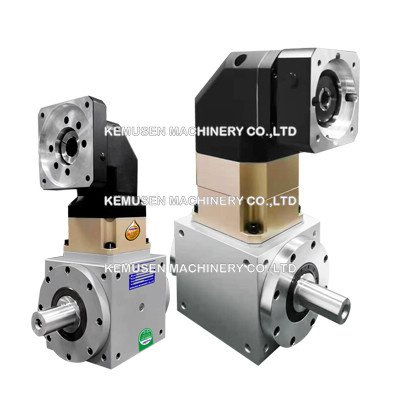

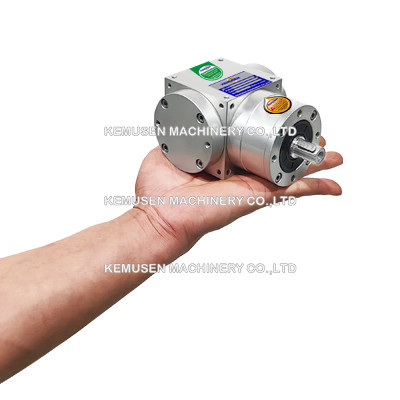

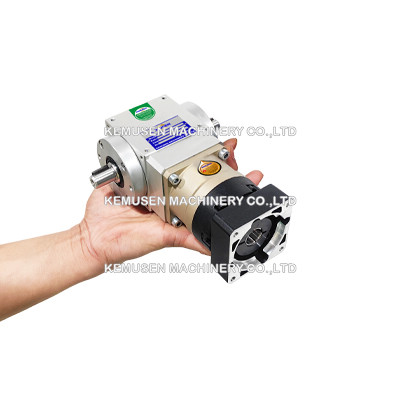

Selecting The Perfect Right Angle Servo Gearboxes for Precision Applications

Selection Guide: KMP075/S2/L2/R3/HM

1. Model

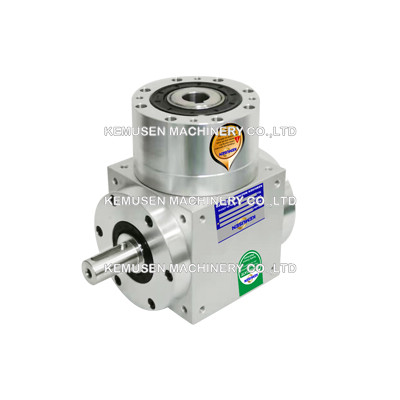

KMP065 - KMP280: solid input shaft configuration.

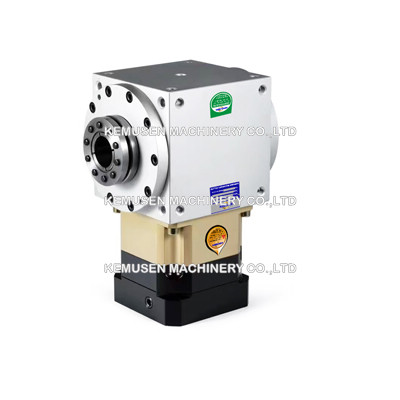

KMPF065 - KMPF280: motor flange input configuration.

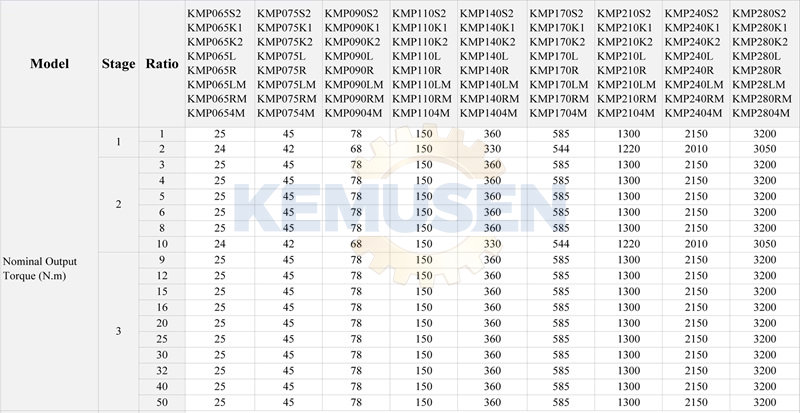

About the torque, power and speed of servo gearboxes, please refer to the technical specification table.

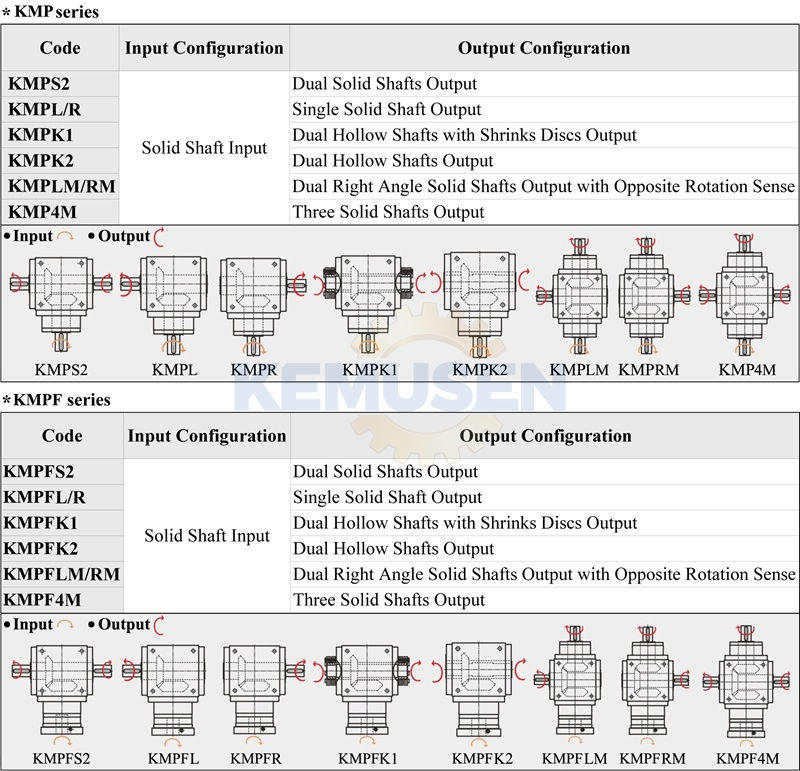

2. Output Configurations

S2: double solid output shafts.

L: single solid input shaft, left side.

R: single solid input shaft, right side.

K1: hollow compression connection output shaft.

K2: hollow keyed output shaft.

LM: three shafts(single input wit two driven output shafts) joined by three spiral bevel gears, left side.

RM: three shafts(single input wit two driven output shafts) joined by three spiral bevel gears, right side.

4M: four drive shafts(single input wit three driven output shafts) and three spiral bevel gears.

3. Stage and 4. Gear Ratios

L1: 1-stage. Gear Ratios include 1:1 and 2:1.

L2: 2-stage. Gear Ratios include 3:1, 4:1, 5:1, 6:1, 8:1 and 10:1.

L3: 3-stage. Gear Ratios include 9:1, 12:1, 15:1, 16:1, 20:1, 25:1, 30:1, 32:1, 40:1, 50:1.

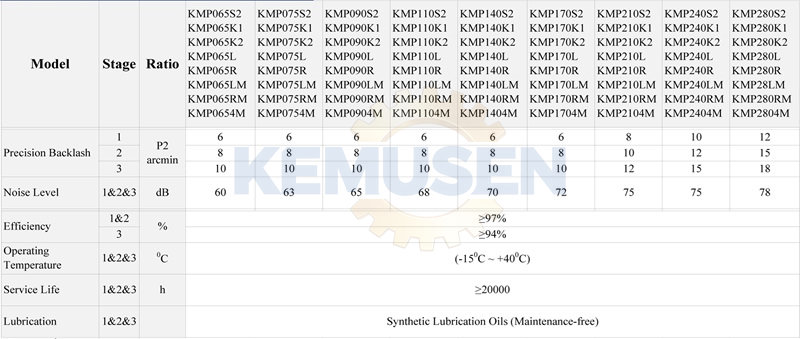

5. Backlash (arcmin)

P2: standard backlash.

P1: precision backlash.

P0: ultra precision backlash.

6. Motor Designation

Motor Types: Servo Motor or Stepper Motor.

Manufacturer Type: _____.

And Model and Drawing: _____..
