Screw Jack 5kN

Screw Jack 5kN is designed for workplace table height adjustments. This jack has a anodized aluminum housing with very compact design and small square box sizes. Available in 5:1 and 20:1 worm gear ratios. Trapezoidal lead screw diameter 18 mm, pitch 4 mm with single start screw thread, custom 8 mm double lead. There are no standard stroke and all mini worm gear screw jack systems travel lengths are built with customers required. Maximum stroke length 1000 mm for tension loads, will be shorter stroke under compression loads. Compact Square Screw Jack features a comprehensive line of worm gear screw jacks. The square gearbox housings are machined on all sides for flexible and accurate mounting. These jacks are available in three versions: Translating, Keyed, and Rotating, each with a number of possible configurations and options.

Product Catalog

Square Machine Screw Jack.pdf

Product Specifications

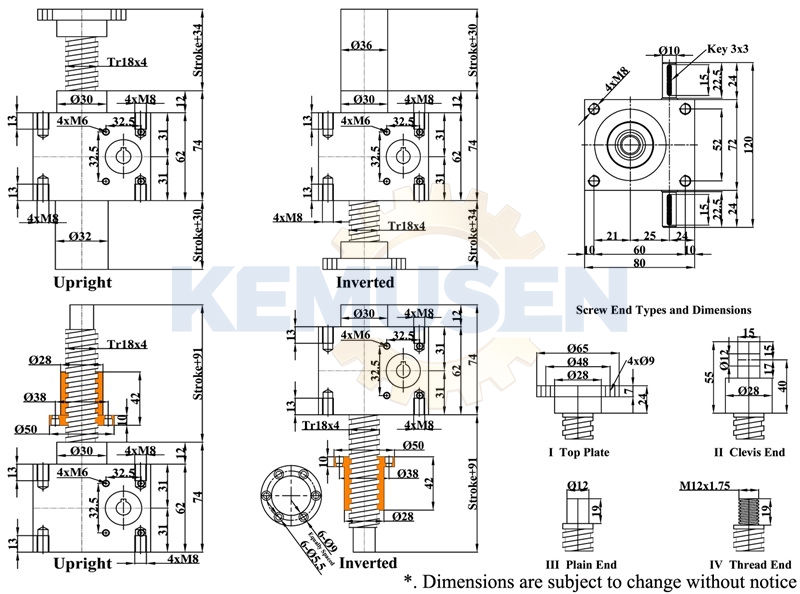

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
