Screw Jack 50kN

Screw Jack 50kN offfer a positive mechanical action, precise positioning and uniform lifting speeds. Available in 7:1 and 28:1 worm gear ratios. Trapezoidal lead screw diameter 40 mm, pitch 7 mm with single start screw threads, custom 14 mm with double start threads, but double-start trapezoidal spindles are reversible and a mechanical brake is necessary. Standard screw jack with right-hand worm screws and right-hand spindles, custom left-hand spindles. Custom travel lengths with maximum stroke length 3000 mm for tension loads, will be shorter stroke under compression loads. A brake motor is also recommended in applications characterised by shock loads or strong vibrations.

Product Catalog

Square Machine Screw Jack.pdf

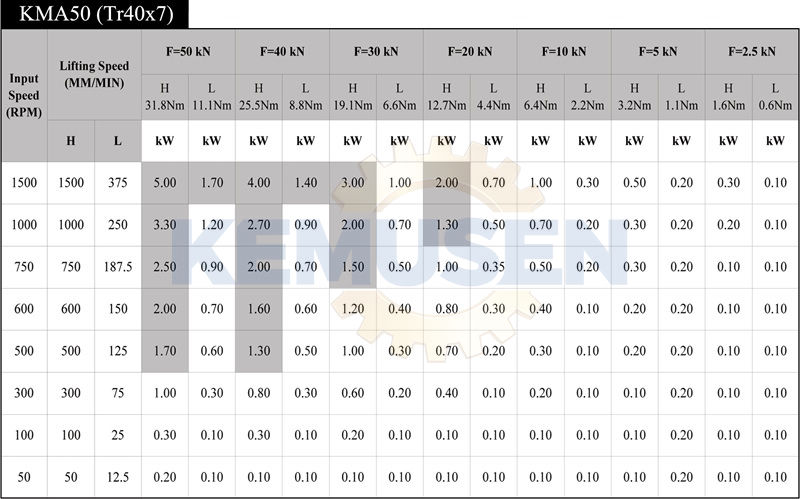

Product Specifications

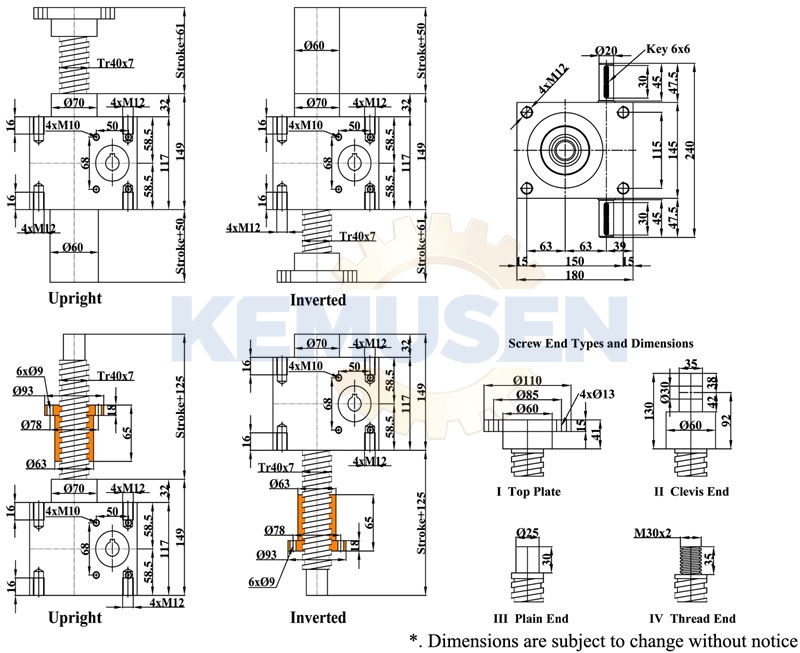

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
