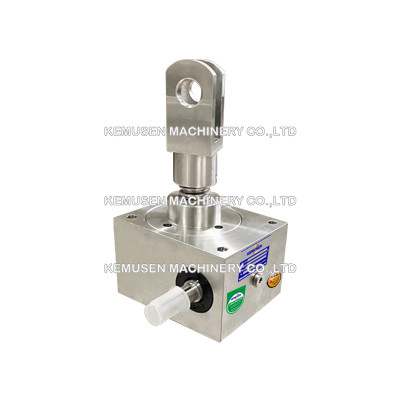

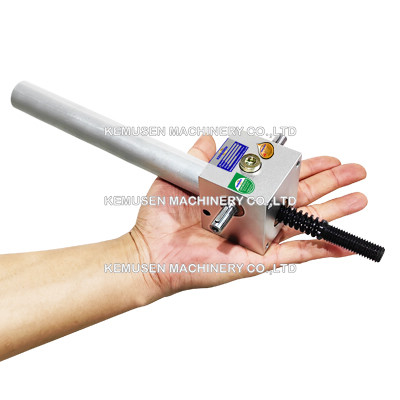

Screw Jack 2.5kN

Screw Jack 2.5kN, also called mini worm gear screw jack. It has a anodized aluminum housing with very compact design and the smallest sizes. Available in 5:1 and 20:1 worm gear ratios. Trapezoidal lead screw diameter 14 mm, pitch 4 mm. There are no standard stroke and all small screw jacks travel lengths are built with customers required. Thanks to its square gearbox design, the miniature screw jack offers versatile mounting options that allow for flexible integration into various machines and systems, such as designed for height adjustment of wash tanks in aluminium beverage can production line. Can customize the smallest jacks to your specifications.

Product Catalog

Square Machine Screw Jack.pdf

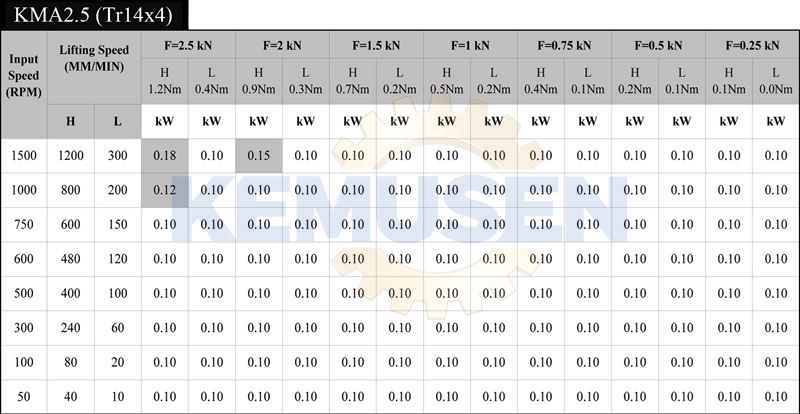

Product Specifications

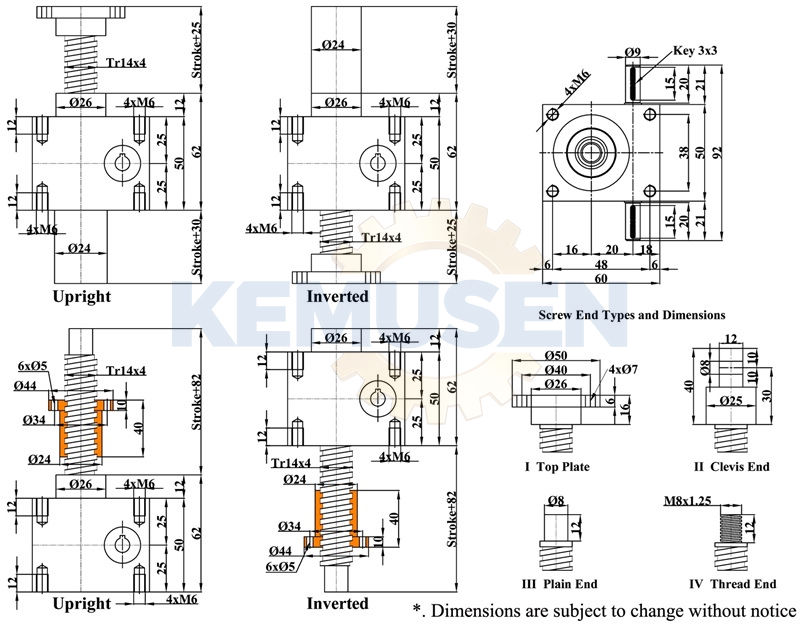

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
