Right Angle Bevel Gearboxes Torque 900Nm Power 96kW

Right Angle Bevel Gearboxes Torque 900Nm Power 96kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 50mm. The gear transmission average efficiency up to 94%. Right Angle Power Transmission Gearboxes feature a fully enclosed housing that ensures its internal gears won't get out of alignment, won't jam, and won't be affected by contaminants.

Product Catalog

Standard Bevel Gearbox.pdf

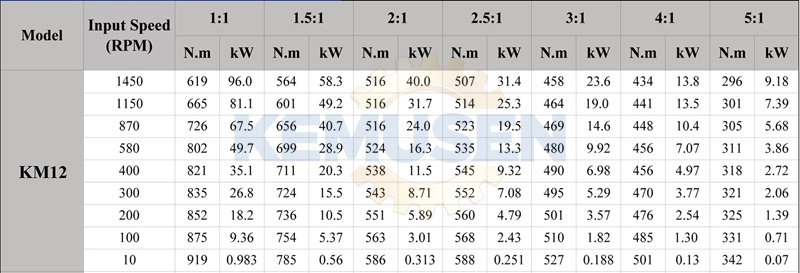

Product Specifications

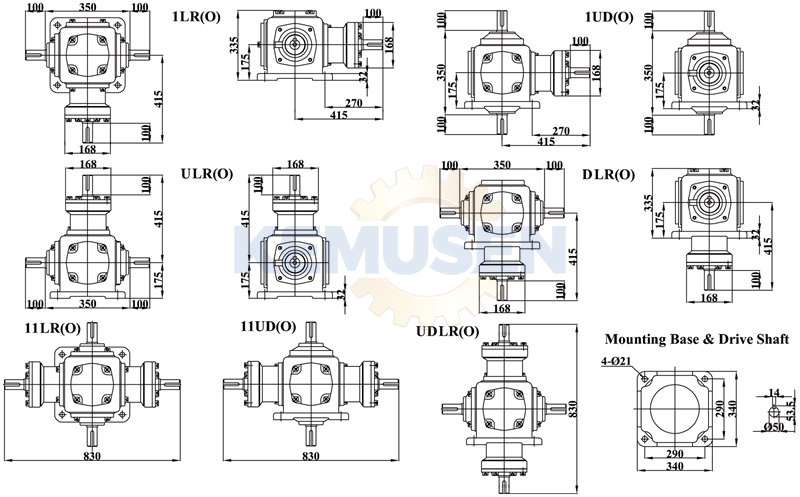

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
