Right Angle Bevel Gearboxes Torque 5700Nm Power 335kW

Right Angle Bevel Gearboxes Torque 5700Nm Power 335kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 2:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 85mm. The gear transmission average efficiency up to 94%. A 3-shaft gearbox has three shafts: the input and the output shaft extending out both sides of the housing. It is typically used in rear engine gear reducers. The input and output shafts are at 90 degrees to each other.

Product Catalog

Standard Bevel Gearbox.pdf

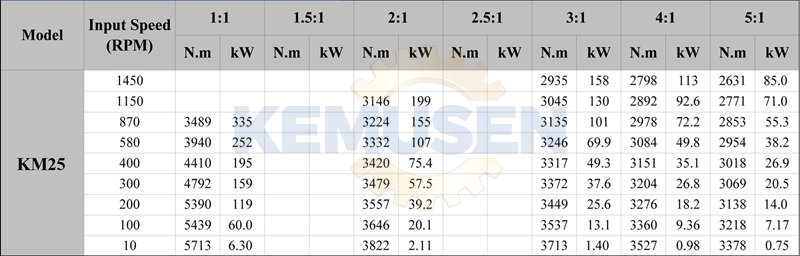

Product Specifications

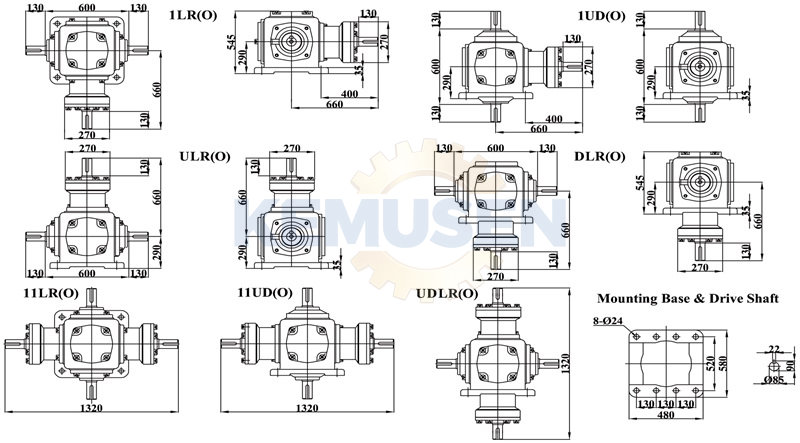

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
