Right Angle Bevel Gearboxes Torque 550Nm Power 65kW

Right Angle Bevel Gearboxes Torque 550Nm Power 65kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 45mm. The gear transmission average efficiency up to 94%. The Gearboxes serve different functions based on the ratio and are typically used in conveyors, rotary axis drives, and drivetrains. Right Angle Gearboxes with a ratio greater than 1:1 can also be used as a speed reducer.

Product Catalog

Standard Bevel Gearbox.pdf

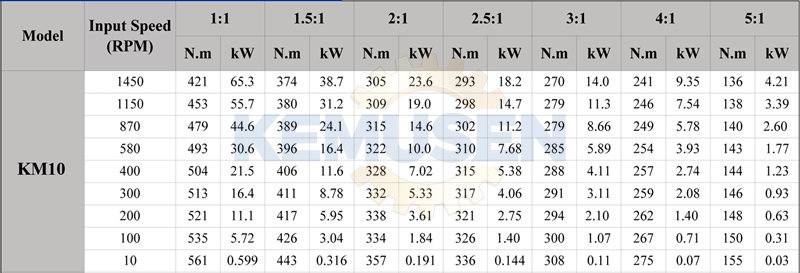

Product Specifications

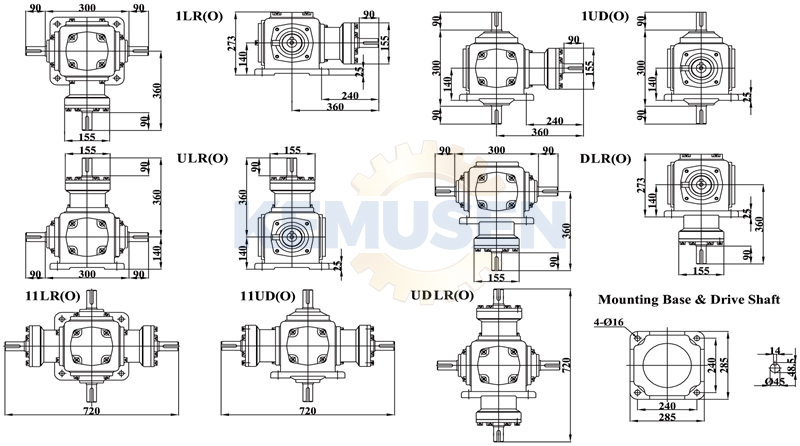

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
