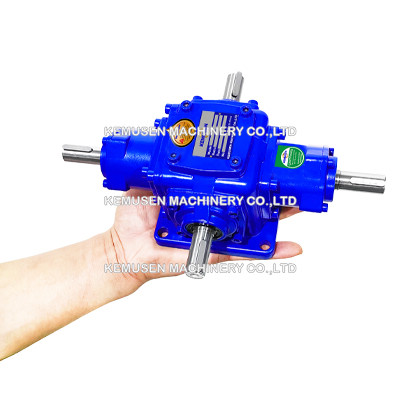

Right Angle Bevel Gearboxes Torque 45Nm Power 4.94kW

Right Angle Bevel Gearboxes Torque 45Nm Power 4.94kW and a maximum allowable Speed of 1500 rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1 and 2:1 ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 94%. Three-Way Right Angle Gearboxes feature one input shaft and two output shafts to provide an easy 90-degree turn of power transmission. This design allows for changes in axis rotation along with a smooth transfer of power with minimal backlash.

Product Catalog

Standard Bevel Gearbox.pdf

Product Specifications

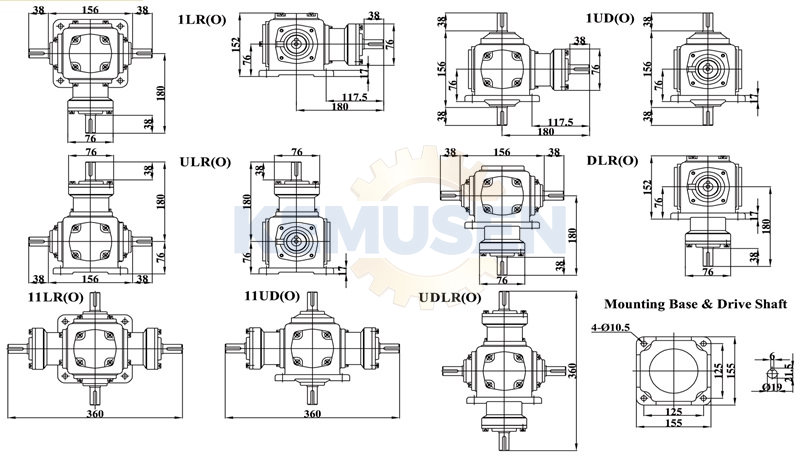

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
