Right Angle Bevel Gearboxes Torque 350Nm Power 45.6kW

Right Angle Bevel Gearboxes Torque 350Nm Power 45.6kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 40mm. The gear transmission average efficiency up to 94%. The Right angle gear drives are ideal for applications with limited space and where the driven equipment needs to be close to each other. This design allows for changes in axis rotation along with smooth transfer of power with minimal backlash.

Product Catalog

Standard Bevel Gearbox.pdf

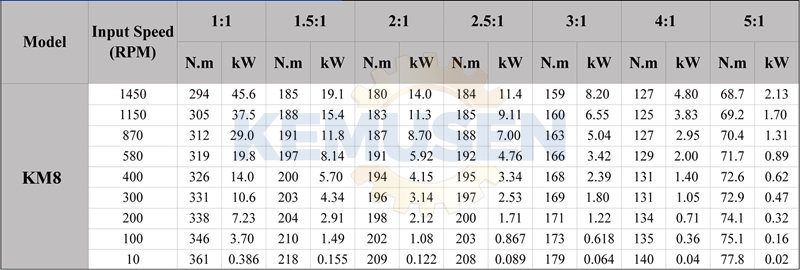

Product Specifications

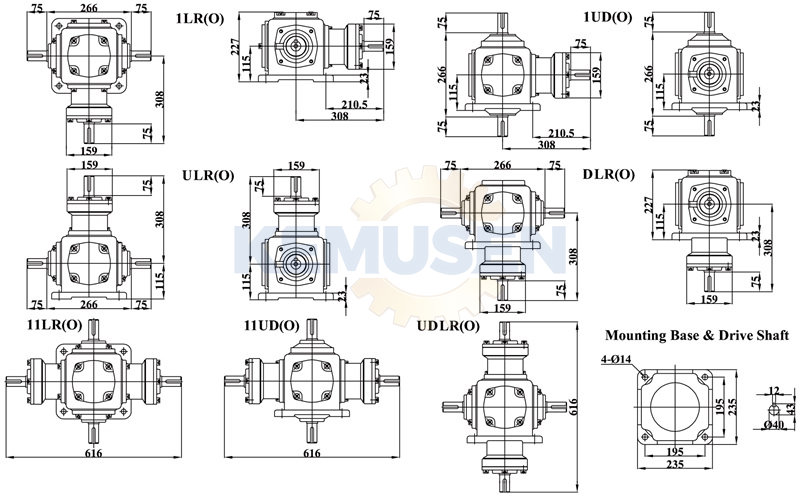

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
