Right Angle Bevel Gearboxes Torque 3200Nm Power 230kW

Right Angle Bevel Gearboxes Torque 3200Nm Power 230kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 2:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 72mm. The gear transmission average efficiency up to 94%. Shaft to Shaft Bevel and Bevel-T Gearboxes provide outputs at 90° from the input and utilize a single, T-shaped shaft that passes through the entire unit, with both ends rotating in the same direction simultaneously. Counter-rotating Bevel T gearboxes are also available.

Product Catalog

Standard Bevel Gearbox.pdf

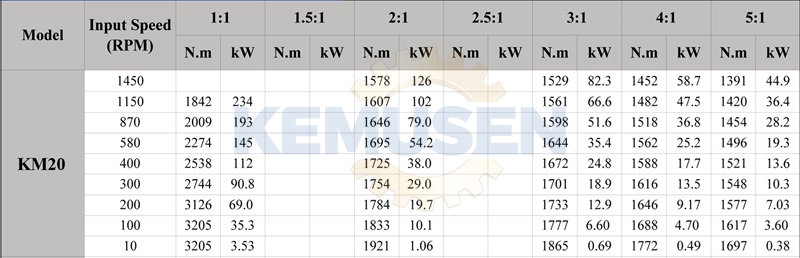

Product Specifications

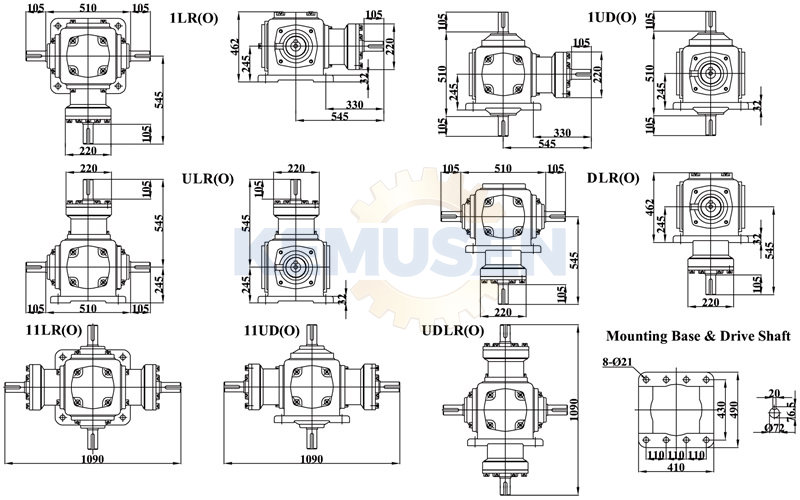

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
