Right Angle Bevel Gearboxes Torque 25Nm Power 1.79kW

Right Angle Bevel Gearboxes Torque 25Nm Power 1.79kW and a maximum allowable Speed of 1500 rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1 and 2:1 ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 94%. These right angle gearboxes provide outputs at 90° from the input with superior performance, low backlash, smooth rotation, silent drive, low running temperature, long life and easy installation. They are applications in pumps, damper controls, case openers, paper rewinders, test equipment, blowers and fans, unloaders and unscramblers, bottle capping, electroplating machinery, folding machines, screw jack lift system, transfer machines, chemical mixers, power transmission equipment, food processing equipment and recording equipment.

Product Catalog

Standard Bevel Gearbox.pdf

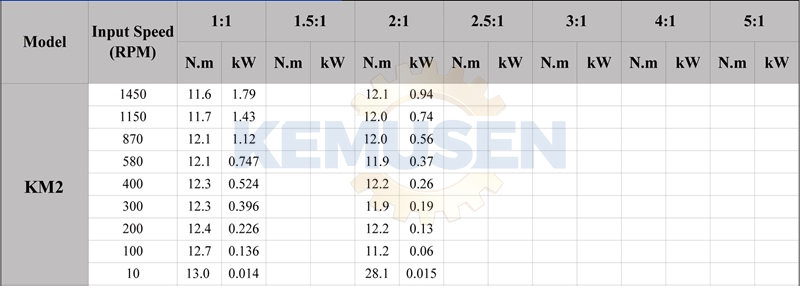

Product Specifications

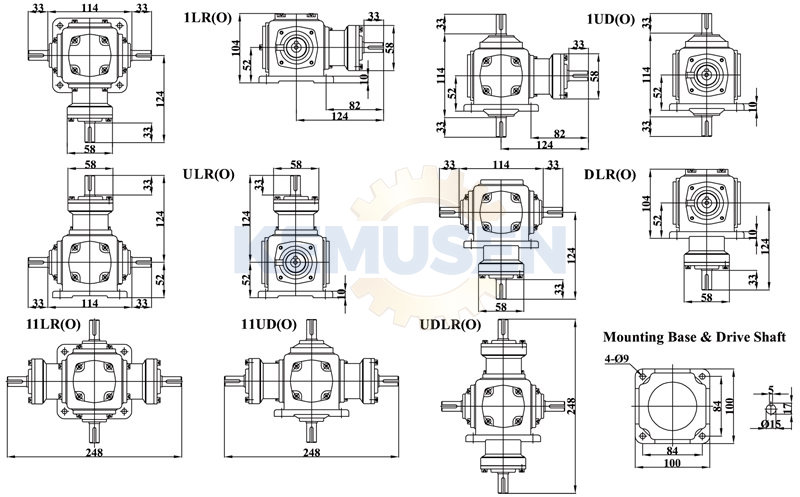

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
