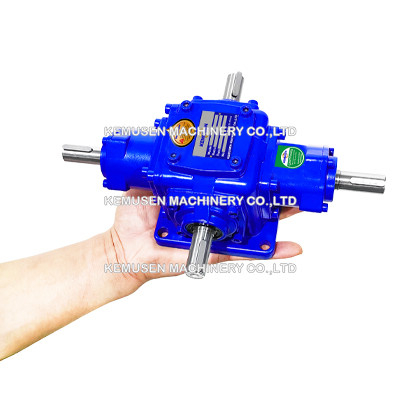

Right Angle Bevel Gearboxes Torque 200Nm Power 22kW

Right Angle Bevel Gearboxes Torque 200Nm Power 22kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 32mm. The gear transmission average efficiency up to 94%. These right angle gearboxes are used in Industrial Dryers, Folding Machines, Brushing Machinery, Power Transmission Equipment, Pumps, Damper Controls, Case Openers, Paper Rewinders and Test Equipment.

Product Catalog

Standard Bevel Gearbox.pdf

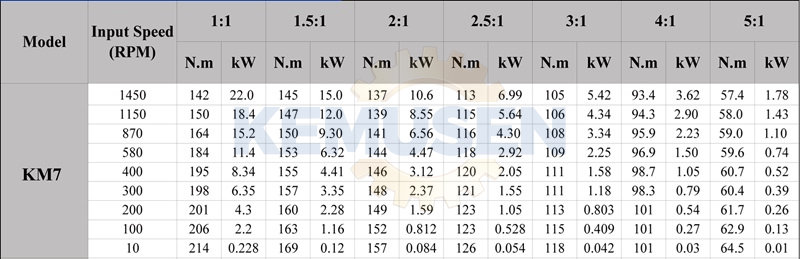

Product Specifications

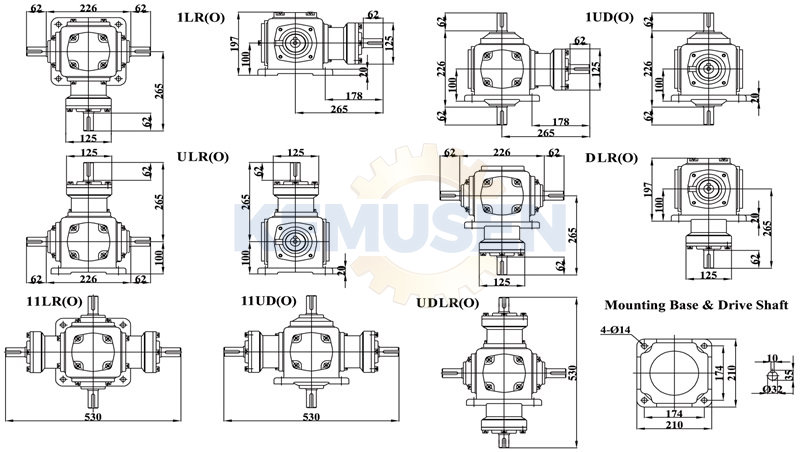

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
