Right Angle Bevel Gearboxes Torque 1900Nm Power 163kW

Right Angle Bevel Gearboxes Torque 1900Nm Power 163kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 2:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 60mm. The gear transmission average efficiency up to 94%. Our right angle gearbox lineup includes shaft to shaft, shaft to bore, bore to bore, 2 shaft, 3 shaft, high ratio, and low profile models. All our Bevel T right angle gearboxes are built with a single output shaft extended out both sides of the box, so both ends rotate simultaneously in the same direction.

Product Catalog

Standard Bevel Gearbox.pdf

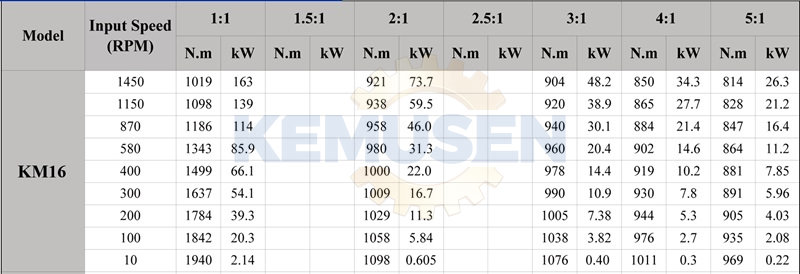

Product Specifications

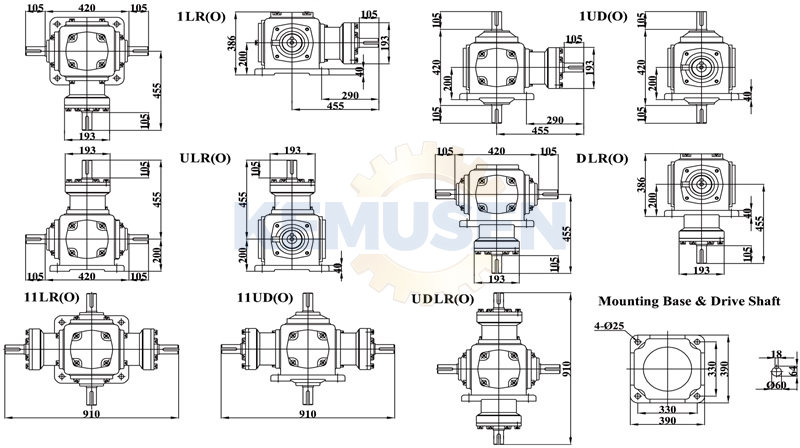

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
