Right Angle Bevel Gearboxes Torque 125Nm Power 14.9kW

Right Angle Bevel Gearboxes Torque 125Nm Power 14.9kW and a maximum allowable Speed of 1500rpm. Used in pairs case hardened alloy steel Spiral Bevel Gears to transmit rotary motion, mechanical power and torque. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1 and 5:1 gear ratios. 2-way, 3-way and 4-way configurations. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts with diameter 25mm. The gear transmission average efficiency up to 94%. 90-degree right angle gear reducers are used throughout dozens of industries to alter torque and speed in drive components. Any use that demands the reliable transfer of speed or power.

Product Catalog

Standard Bevel Gearbox.pdf

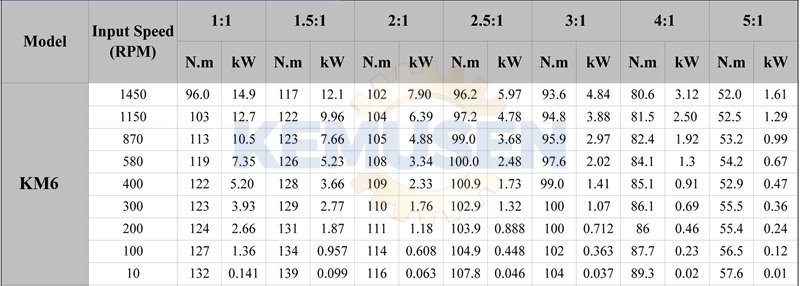

Product Specifications

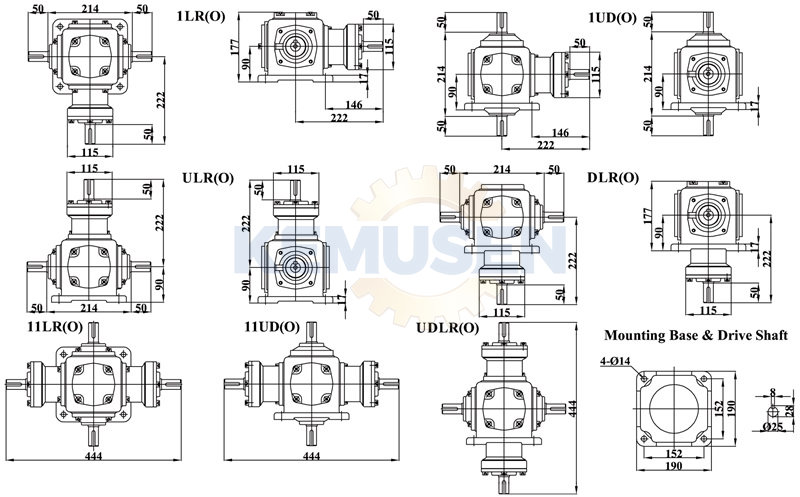

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
