Right Angle Bevel Gearboxes Torque 125Nm Power 14.9kW

Share to:

Right Angle Bevel Gearboxes Gearbox Components and Parts

A right-angle bevel gearbox is a mechanical assembly designed to transmit power between two shafts that intersect at a 90-degree angle. Its reliability depends on the synergy of its internal and external components, which are typically chosen based on the application's load and environmental requirements. Bevel Gears: These are the core elements that transfer rotational motion at a 90-degree angle. Spiral bevel gears are often used for high-speed or high-torque needs due to their smoother, quieter operation, while straight bevel gears are common in simpler, low-speed mechanisms.

Availability:

Quantity:



Inquire Add to Basket

Model:
KM2 - KM25
Brand:
KEMUSEN

Components and Parts

High-quality materials, typically produce the best-performing Right Angle Bevel Gearboxes. Below is a summary of the various materials used in Right Angle Bevel Gearboxes construction.

KM (2)

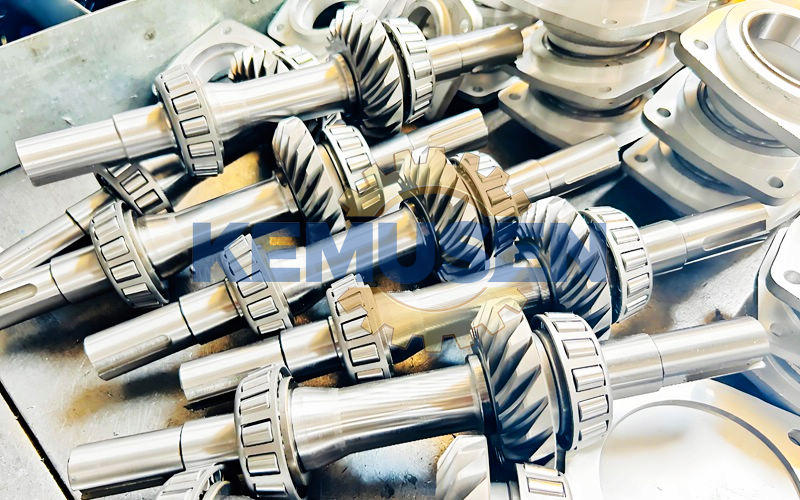

1. Spiral Bevel Gear is high purity rugged alloy steel 20CrMnTi, carburizing process, case hardened and lapped in pairs for intersecting shafts.

2. Input Shaft is hardened and tempered alloy steel 40Cr. Custom 304, 316 stainless steel.

3. Output Shaft is hardened and tempered alloy steel 40Cr. Custom 304, 316 stainless steel.

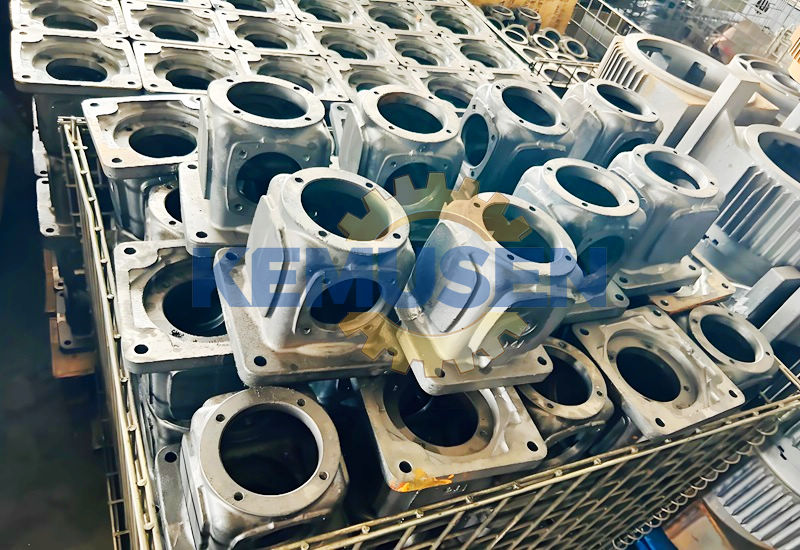

4. Housing is high rigidity cast iron.

5. Bearing is chromium bearing steel. Custom 304 stainless steel.

6. Oil Seals is double-lip oil seal with high dust-proof and oil leak proof.

KM (3)
