Stainless Steel Screw Jack

Aluminum Housing 90 Degree Gearbox Torque 7.15Nm Power 1.11kW

Share to:

Parts And Materials of Aluminum 90 Degree Right Angle Gearbox

An aluminum 90-degree right-angle gearbox is primarily defined by its aluminum alloy housing, which provides a lightweight, corrosion-resistant structure. Internally, it relies on precision-machined steel components to manage mechanical stress. Housing (Frame): Typically made from Aluminum Alloy (such as 6061). It protects internal parts, dissipates heat, and often features an anodized or chromate conversion finish for added durability.

Availability:

Quantity:



Inquire Add to Basket

Model:
KML0 - KML3
Brand:
KEMUSEN

Parts And Materials

Aluminum 90 Degree Gearboxes includes input and output shaft flanges to simplify mounting and installation. Because a high-precision spiral bevel gear is adopted, high performance can be obtained over a wide range. High-quality materials meets international standards, typically produce the best-performing 90 Degree Gearboxes. Below is a summary of the various materials used in 90 Degree Gearboxes construction.

KML

1. Spiral Bevel Gear is high purity rugged alloy steel, carburizing process, case hardened and lapped in pairs for intersecting shafts.

2. Input Shaft is hardened and tempered alloy steel. Custom corrosion resistant stainless steel shafts.

3. Output Shaft is hardened and tempered alloy steel. Custom corrosion resistant stainless steel shafts.

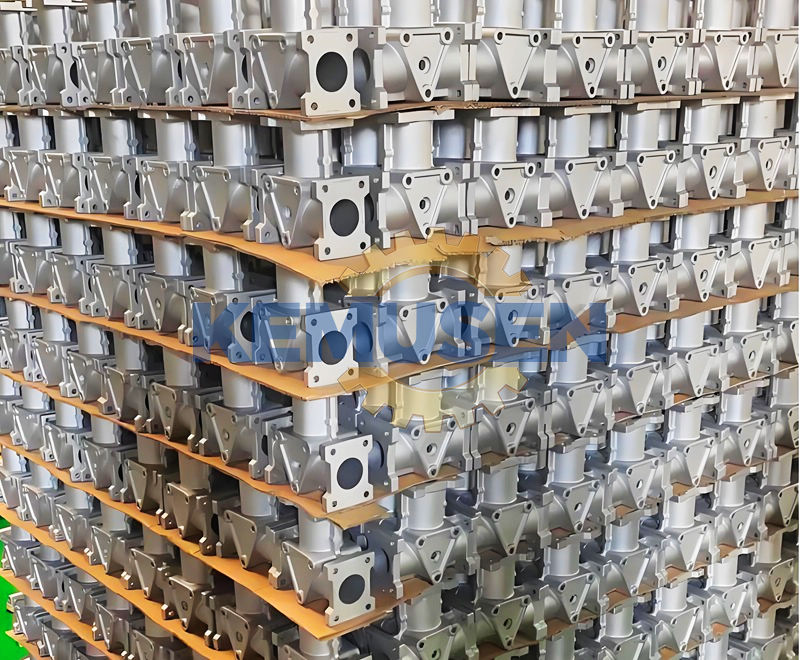

4. Housing is die-casting aluminum alloy. The compact cast aluminum housing provides high strength and excellent heat dissipation.

5. Bearing is chromium bearing steel. Custom 304 stainless steel.

6. When delivered, the gearboxes are filled grease with lubrications.

KMV (2)
