Miniature Spiral Bevel Gearbox Torque 7Nm Power 1.1kW

Miniature Spiral Bevel Gearbox Torque 7Nm Power 1.1kW is modular design bevel gearboxes with square housing. The mini gearbox is the best option available on the market for the miniature automation applications, such as semiconductor, when high performance is required and space is at a premium. Available in 1:1 and 2:1 ratios. 2-way, 3-way and 4-way configurations, custom 5-way gearboxes. Available in solid shaft and hollow output shaft configurations. Allows both horizontal and vertical shafts. The gear transmission average efficiency up to 94%. The spiral bevel gearbox offers a robust, powerful and compact design, for right angle power transmission. The practical square shape of bevel gearboxes allow universal mounting possibilities on every kind of machines. They are proven in the market for their versatility, very low backlash and low transmission error. The design comprises of ball bearings for quiet operation and tapered bearings for higher radial load capacity. Application in Pulp and paper industry, food processing, off-shore industry, mining and mineral industry, paper machine drives, pulper drives, blowers, pumps, vacuum pump drives and flooding pump stations.

Product Catalog

Square Bevel Gearbox.pdf

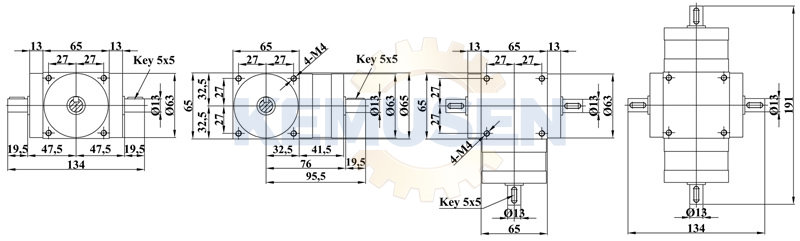

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
