Listing of Electric Servo Cylinder Parts and Components

An electric servo cylinder is a sophisticated mechatronic actuator that integrates a motor, a mechanical conversion system, and a feedback loop to provide precise linear motion. Its components are generally categorized into the driving unit, the linear conversion mechanism, and the control/feedback system. The motor is the primary source of mechanical power, converting electrical energy into rotational movement. Limit Switches: Safety sensors that cut power if the piston reaches the extreme ends of its stroke, preventing mechanical damage.

Availability:

Quantity:



Inquire Add to Basket

Model:
KMZ1.5-KMZ600, KMT1.5-KMT600
Brand:
KEMUSEN

Parts and Components

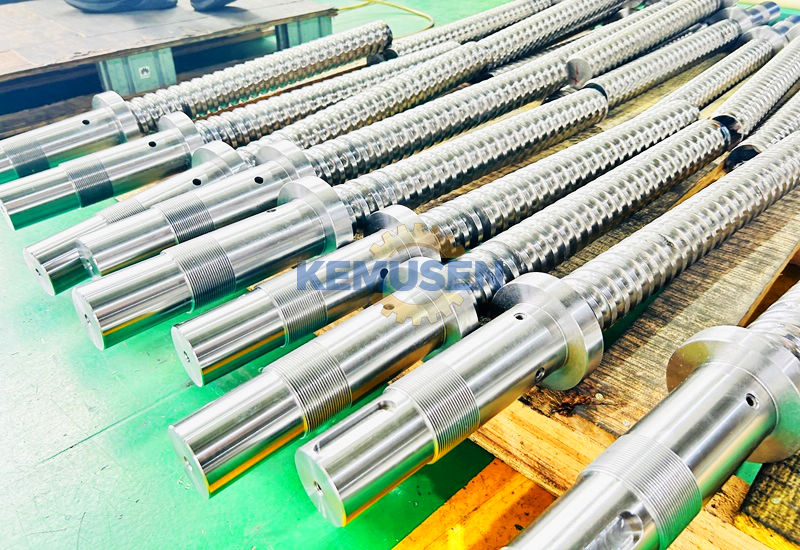

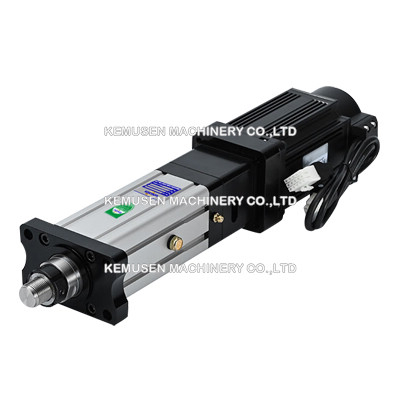

An Electric Cylinder is an Motorized Actuator that performs linear motion by means of a Servomotor or Stepper Motor. It consists of a ball screw and a piston rod, which is extended and retracted and generates the linear motion, similar to a pneumatic cylinder. Can trouble-free long-term work under the bad environment, and realize high strength, high speed, high precision movement, movement is smooth, low noise, special anti-rotating function ensure the high accuracy position control and high security.

KMZ (1)
