Key Components And Configurations of Precision Right Angle Gearbox

The high precision right angle spiral bevel gearbox simplified structure design with high torque, high speed and low backlash applies to applications of precision servo. Easy mount, low noise, low vibration, maintenance-free under normal operating conditions, no need to replace the grease and long service life. High-quality materials meets international standards, typically produce the best-performing high precision spiral bevel gearboxes. Below is a summary of the various materials used in high precision spiral bevel gearboxes construction.

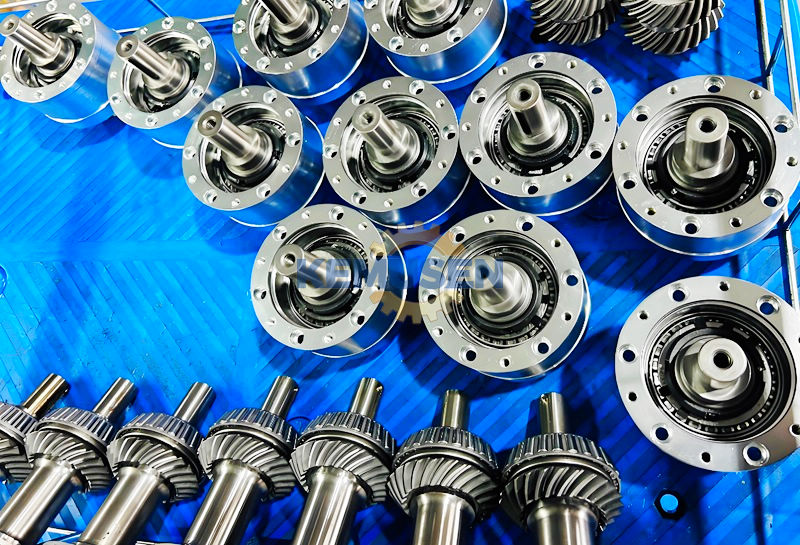

1. High Precision Spiral Bevel Gear is high purity rugged alloy steel 20CrMnTi, carburizing process, case hardened and lapped in pairs for intersecting shafts. Hardness: HRC62.

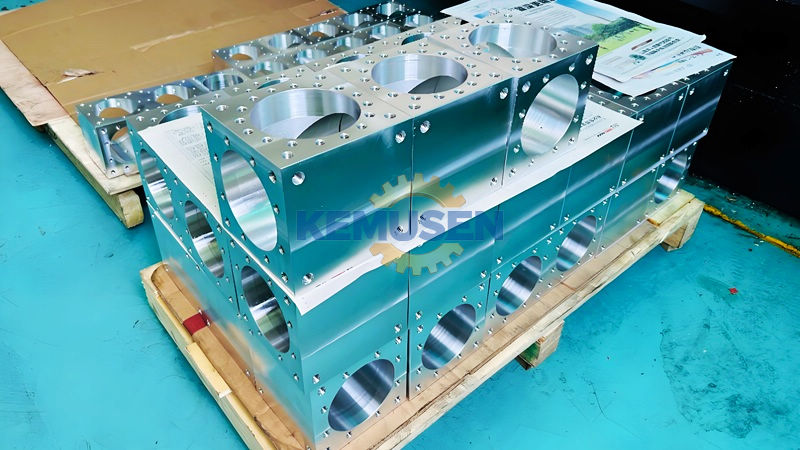

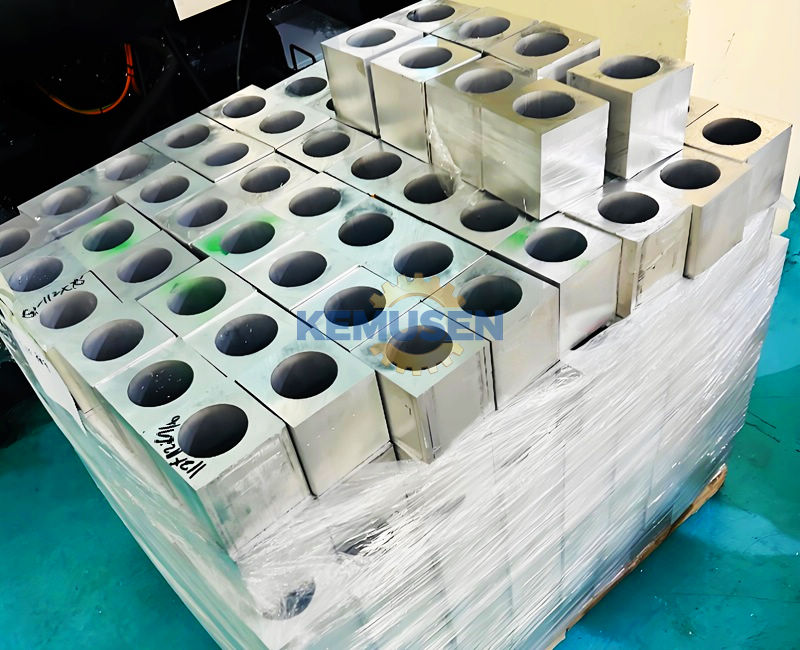

2. Housing(compact structure) is high quality aluminum alloy. Custom 304, 316 stainless steel.

3. Input Shaft is hardened and tempered alloy steel 40Cr. Custom 304, 316 stainless steel.

4. Output Shaft is hardened and tempered alloy steel 40Cr. Custom 304, 316 stainless steel.

5. Bearing is chromium bearing steel. Custom 304 stainless steel.
