How To Choose An Electric Servo Cylinder

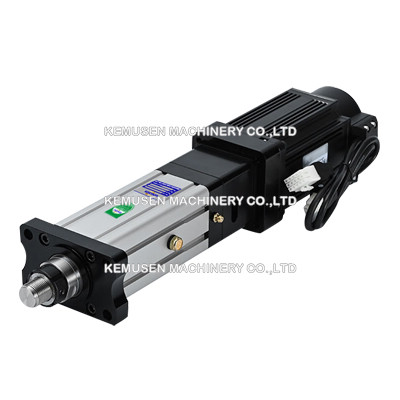

Selection Guide: KMZ50/L20/C800/P02/RE/R1/FCP

1. Model

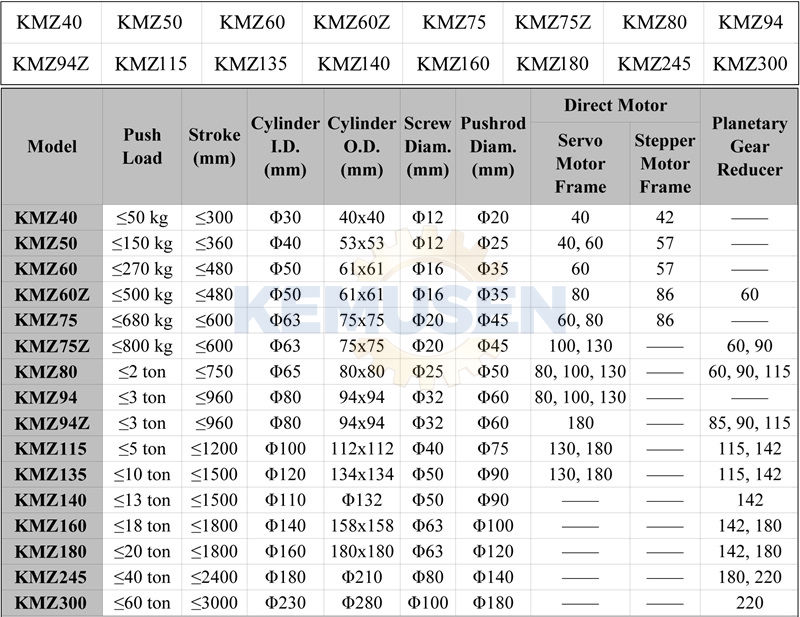

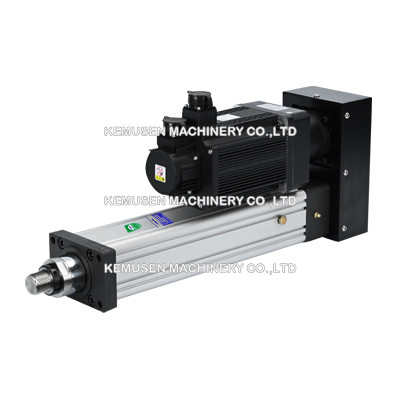

KMZ1.5 - KMZ600: Parallel Drive Design, maximum push load 1.5KN to 600KN.

KMT1.5-KMT600: Inline Drive Design, maximum push load  1.5KN to 600KN.

Note: The Push Load, Stroke and Speed of the Servo Electric Cylinders need to be combined with the actual use, and the three upper limits cannot be used in combination at the same time.

2. Ball Screw Lead

L20 is 20mm lead.

Different models and speeds correspond to different lead of ball screws. Please refer to the corresponding technical parameters in the catalog.

3. Stroke

C800 is 800mm stroke. Custom stroke.

Stroke is travel length expressed in millimeter(mm) and not the actual pushrod length.

There are no standard travel lengths, all electric cylinders' stroke lengths are produced according to your requirements.

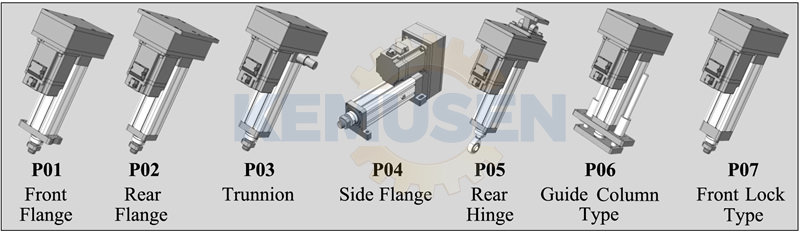

4. Mounting Types

P01 is Front flange mounting.

P02 is Rear flange mounting.

P03 is Trunnion mounting.

P04 is Side flange mounting.

P05 is Rear hinge mounting.

P06 is Guide column type mounting.

P07 is Front lock type mounting.

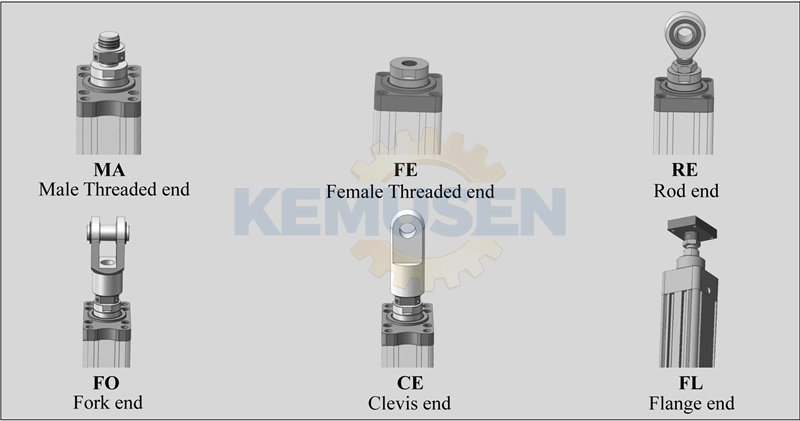

5. Front Attachment

MA is Male threaded end.

FE is Female threaded end.

RE is Rod end.

FO is Fork end (Female clevis).

CE is Clevis end (Male clevis).

FL is Flange end.

6. Ratio

R1 is 1:1 ratio.

R1.5 is 1.5:1 ratio.

R2 is 2:1 ratio.

Please refer to the corresponding technical parameters in the catalog.

7. Accessories

AR is Anti-Rotate device.

FCM is Magnetic reed switches.

FCP is Inductive proximity switches.

SP is Rear bracket.

BB is Bellows Boots.

PL is Load Sensor.
