High Torque Precision Right Angle Gearbox 45Nm

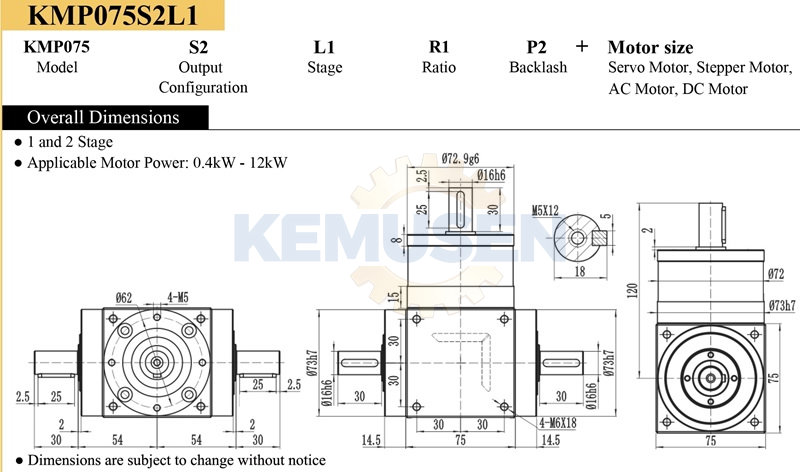

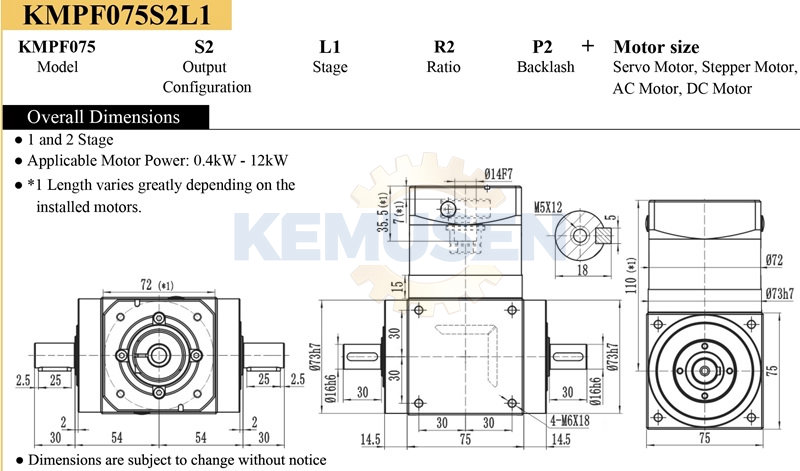

High Torque Precision Right Angle Gearbox 45Nm with ground and case hardened spiral bevel gearing allows for double solid shaft and hollow shaft right angle outputs. Suitable for servo and power transmission applications. 1-stage Precision Gearbox with solid input shaft diameter 16mm, solid output shaft diameter 16mm, hollow ouput shaft diameter 14mm. 2-stage and 3-stage Precision Gearbox motor flange input models are available with a integrated inline Planetary Gearbox on the input for an overall ratio of 50:1. Applicable servomotor power is from 0.4kw to 12kw.

Availability:

Quantity:



Inquire Add to Basket

Model:
KMP075, KMPF075
Brand:
KEMUSEN

High Torque Precision Right Angle Gearbox 45Nm with ground and case hardened spiral bevel gearing allows for double solid shaft and hollow shaft right angle outputs. Suitable for servo and power transmission applications. 1-stage Precision Gearbox with solid input shaft diameter 16mm, solid output shaft diameter 16mm, hollow ouput shaft diameter 14mm. 2-stage and 3-stage Precision Gearbox motor flange input models are available with a integrated inline Planetary Gearbox on the input for an overall ratio of 50:1. Applicable servomotor power is from 0.4kw to 12kw. Gear ratios 1:1 and 2:1(1-stage). 3:1, 4:1, 5:1, 6:1, 8:1 and 10:1 (2-stage). 9:1, 12:1, 15:1, 16:1, 20:1, 25:1, 30:1, 32:1, 40:1, 50:1 (3-stage). These spiral bevel servo grade gearboxes features include various output options, high torque, high efficiency, high speed, long service life, reduced backlash, maintenance free and flexible mounting dimensions. Typical applications for these precision gear reducers include precision rotary axis drives, traveling gantries and columns, material handling axis drives, aerospace, CNC, AGV, machine tool and robotics and electronic line shafting.
