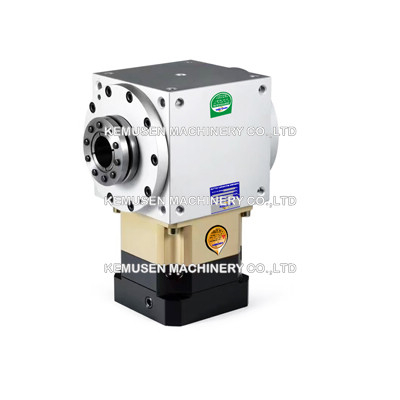

High Torque Precision Right Angle Gearbox 3200Nm

High Torque Precision Right Angle Gearbox 3200Nm with ground and case hardened spiral bevel gearing allows for double solid shaft and hollow shaft right angle outputs. Suitable for servo and power transmission applications. 1-stage Precision Gearbox with solid input shaft diameter 60mm, solid output shaft or hollow ouput shaft diameter 60mm. 2-stage and 3-stage Precision Gearbox motor flange input models are available with a integrated inline Planetary Gearbox on the input for an overall ratio of 50:1. Applicable servomotor power is from 5kw to 220kw. Gear ratios 1:1 and 2:1(1-stage). 3:1, 4:1, 5:1, 6:1, 8:1 and 10:1 (2-stage). 9:1, 12:1, 15:1, 16:1, 20:1, 25:1, 30:1, 32:1, 40:1, 50:1 (3-stage). These spiral bevel servo grade gearboxes features include various output options, high torque, high efficiency, high speed, long service life, reduced backlash, maintenance free and flexible mounting dimensions. Typical applications for these precision gear reducers include precision rotary axis drives, traveling gantries and columns, material handling axis drives, aerospace, CNC, AGV, machine tool and robotics and electronic line shafting.

Product Catalog

Precision Bevel Gearbox.pdf

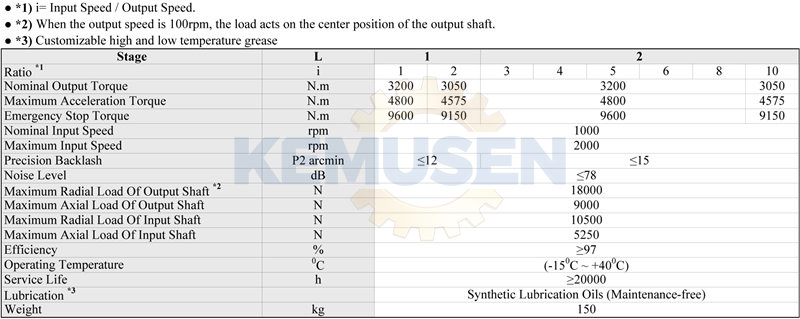

Product Specifications

Product Dimensions

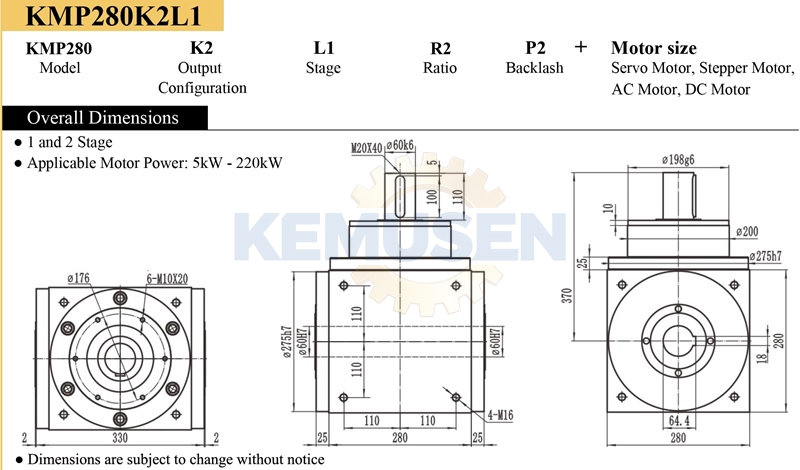

Free 2d .dwg, .dxf drawing, 3d cad models.
