Four Screw Jacks Systems Arrangement

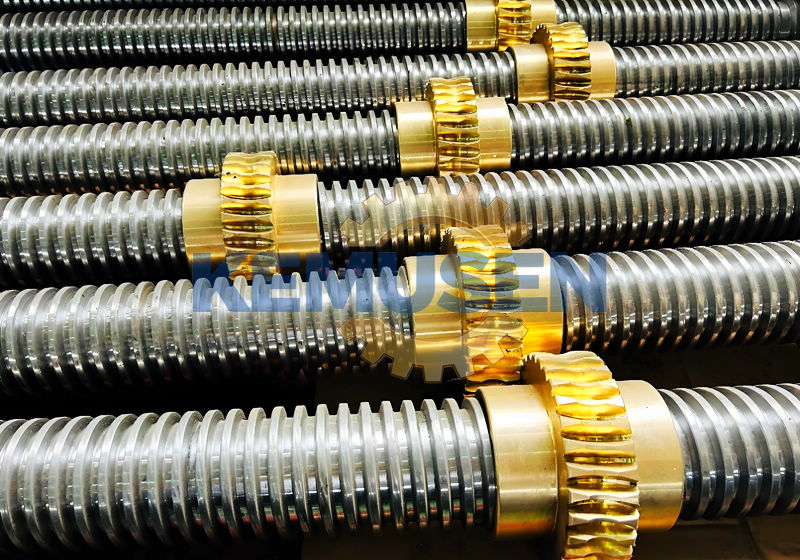

Four Screw Jacks Systems Arrangement, also named A four point lift system that was devised using four screw jacks, bevel gearboxes, couplings and drive shafts. Complete Screw Jack System and lifting platfrom can be built in many formats, such as vertical lifting, pull or push, or horizontal positioning. There are no "standard" travel lengths and all screw jack systems are built to specification. In applications in which either multiple machine screw jacks or ball screw jacks are configured in a lifting system, a single motor could drive all screwjacks, further improving energy efficiency. Whether you need to adjust the height of a conveyor system or position a piece of equipment, we offer a range of screw jacks to suit your need. Can customize jacking systems to your specifications.

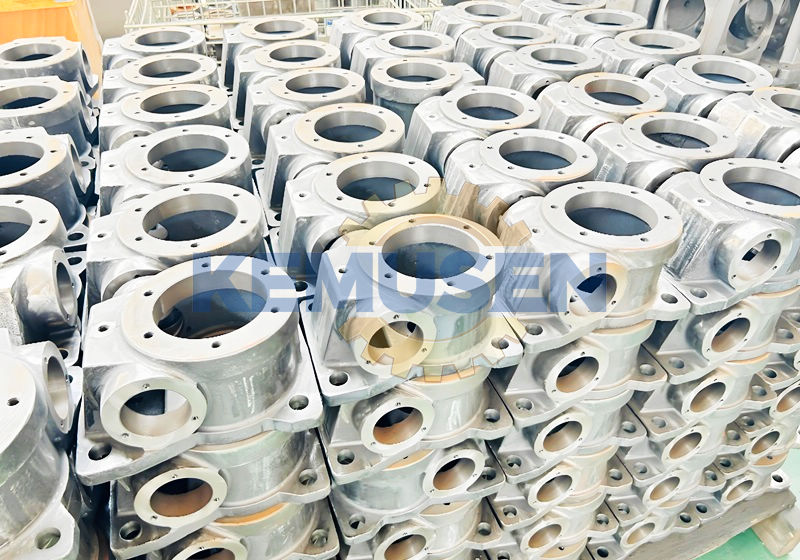

Worm gear screw jack systems are perfect for lifting, lowering, and push or pull movements. The most popular system configurations are the "H",  "U",  "T",  "TT",  "HI" and  "UI" configured 4-jack systems. Note that multiple screw jacks can be linked together mechanically or electrically. Where there are multiple jacks forming part of a complete system, calculate the total input power for the system, including losses in couplings and gear boxes, using the following efficiency: 4-jacks system 85%, bevel gearboxes efficiency 94%. If motorized screw jack system, the bevel-helical gear motors efficiency 90%-95%, but RV worm gear motors efficiency 40%-50%.

Product Catalog

Muti-jack Systems Arrangement.pdf

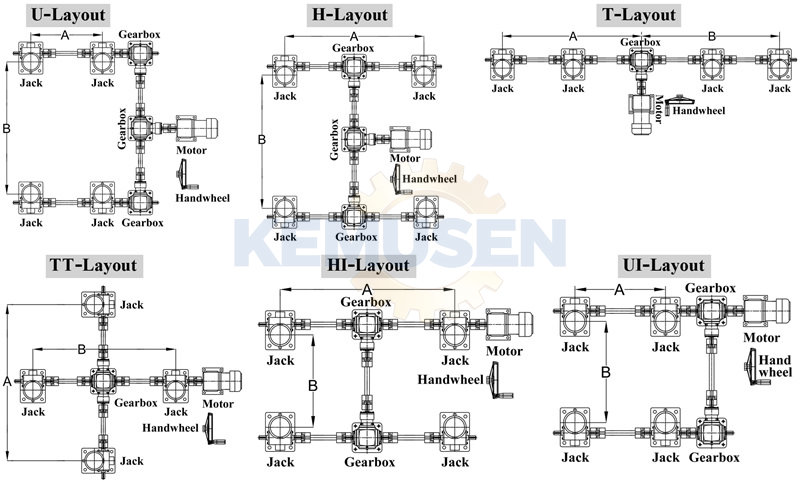

Typical 4-jack System Configurations with Main Components

H-Configuration main components are 4pcs screw jacks (ball screw and machine screw), 3pcs bevel gearboxes, 10pcs or 11pcs couplings, 4pcs connecting shafts, 1pc motor or 1pc hand wheel.

U-Configuration main components are 4pcs screw jacks (ball screw and machine screw), 3pcs bevel gearboxes, 12pcs or 13pcs couplings, 6pcs connecting shafts, 1pc motor or 1pc hand wheel.

T-Configuration main components are 4pcs screw jacks (ball screw and machine screw), 1pc bevel gearbox 3-way, 8pcs or 9pcs couplings, 4pcs connecting shafts, 1pc motor or 1pc hand wheel.

TT-Configuration main components are 4pcs screw jacks (ball screw and machine screw), 1pc bevel gearbox 4-way, 8pcs or 9pcs couplings, 4pcs connecting shafts, 1pc motor or 1pc hand wheel.

HI-Configuration main components are 4pcs screw jacks (ball screw and machine screw), 2pcs bevel gearboxes, 10pcs or 11pcs couplings, 5pcs connecting shafts, 1pc motor or 1pc hand wheel.

UI-Configuration main components are 4pcs screw jacks (ball screw and machine screw), 2pcs bevel gearboxes, 8pcs or 9pcs couplings, 3pcs connecting shafts, 1pc motor or 1pc hand wheel.
