Electric Cylinder Actuator Components And Materials Guide

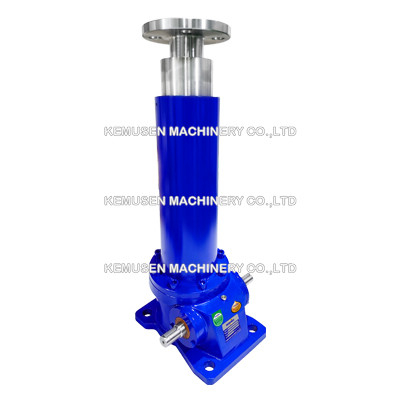

The working principle of electric cylinder actuator is that it integrates a motor and a travelling nut screw jack, converting rotation of the motor shaft into linear motion of the piston rod of the electric linear actuator. We provide the high quality materials that meets the international standards, typically produce the best-performing electric cylinders.

Below is a summary of the various materials used in electric cylinders construction.

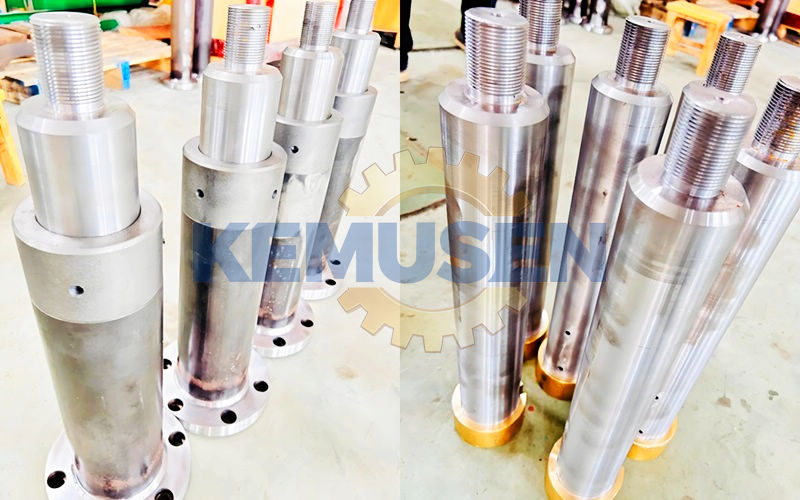

1. Push Rod is high strength steel. Custom 304, 316 stainless steel.

2. Protection Tube is high strength steel. Custom 304, 316 stainless steel.

3. Housing is nodular cast iron. Custom 304 stainless steel.

4. Lifting screw is 45# steel. Custom 304 or 316 stainless steel.

5. Input shaft (worm) is 45# steel, heat treatment process. Custom 304 or 316 stainless steel.

6. Internal wormgear is aluminum bronze.

7. Traveling Nut is aluminum bronze.

8. Safety Nut is aluminum bronze.

9. Bearing is chromium bearing steel. Custom 304 stainless steel.
