Detailed Parts Diagram And Materials of A Ball Screw Jack

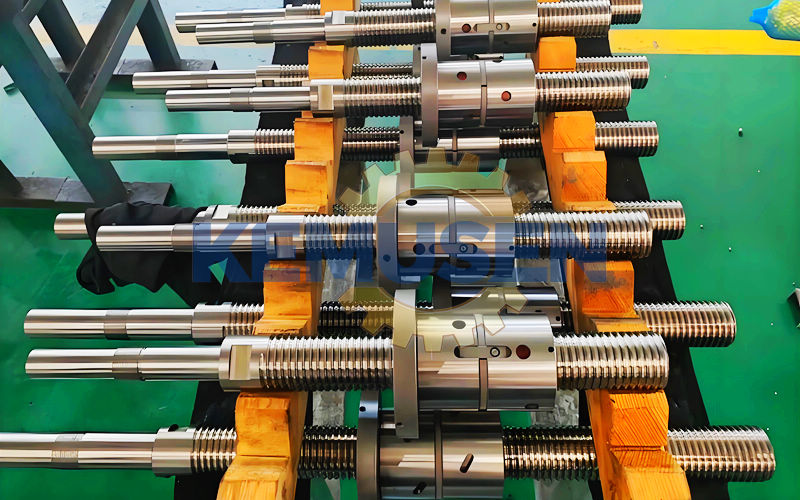

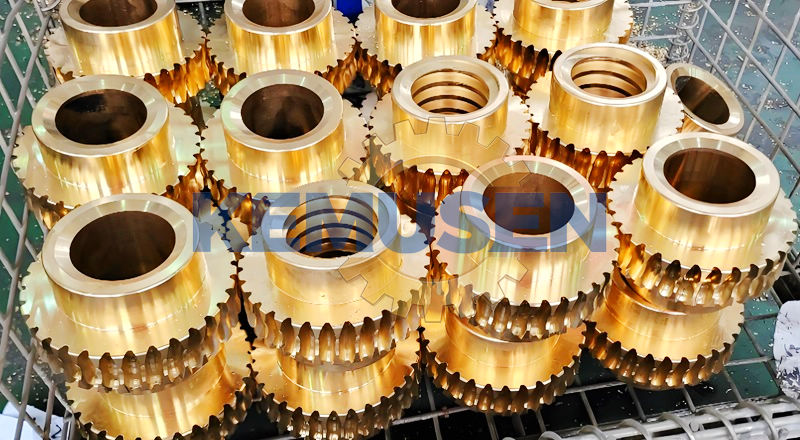

A ball screw jack is a high-efficiency mechanical actuator that uses recirculating ball bearings to convert rotational motion into linear motion. It consists of a gearbox—typically containing a worm gear set—and a ball screw assembly. Worm Gear (Drive Sleeve): The internal gear that mates with the worm shaft; in translating designs, the ball screw passes through its center. Ball Screw Shaft: A precision-threaded rod with helical grooves that provides the linear lifting or moving action. Ball Nut Assembly: Contains the recirculating bearing balls that roll between the nut and the screw grooves.

Availability:

Quantity:



Inquire Add to Basket

Model:
KMB10 - KMB300
Brand:
KEMUSEN

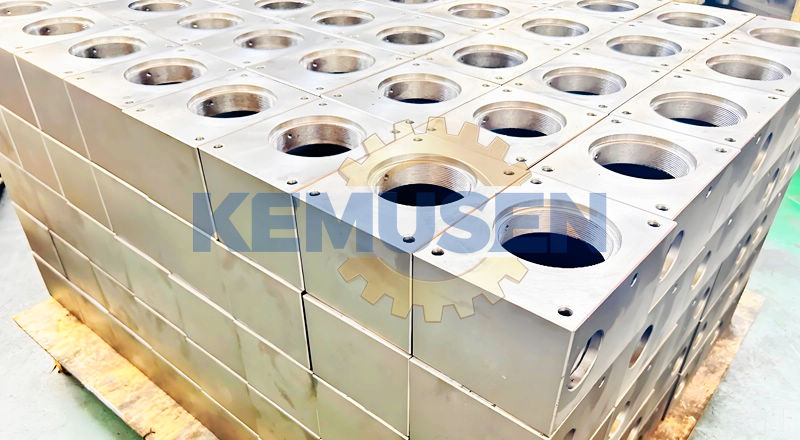

Parts And Materials

We supply high-quality materials for square ball screw jacks, typically produce the best-performing worm gear ball screw jacks. Below is a summary of the various materials used in ball screw jack construction.

KMB1
