KMV065-280, KMVH065-280, KMVF065-280
KEMUSEN
Selection Guide: KMV140/R1/ILR/HM
1. Model
KMV065 - KMV280 is solid input shaft and solid output shafts.
KMVH065 - KMVH280 is solid input shaft and hollow output shafts.
KMVF065 - KMF280 is motor adapter(IEC flange) input and solid output shafts.
KMVQ065 - KMVQ280 is motor adapter(IEC flange) input and hollow output shafts.

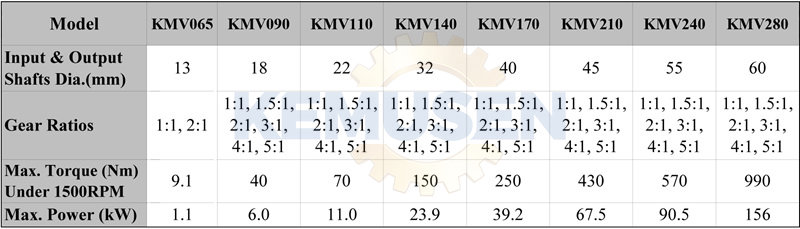

About the torque, power and speed, please refer to the technical specification table.

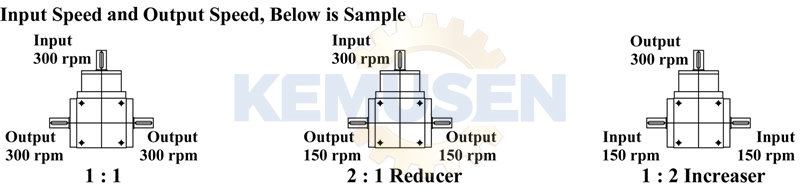

2. Gear Ratio
R1: 1:1, input speed(rpm) = output speed(rpm).
R1.5: 1.5:1, input speed(rpm) = 1.5 times output speed(rpm).
R2: 2:1, input speed(rpm) = 2 times output speed(rpm).
R3: 3:1, input speed(rpm) = 3 times output speed(rpm).
R4: 4:1, input speed(rpm) = 4 times output speed(rpm).
R5: 5:1, input speed(rpm) = 5 times output speed(rpm).
Note: Maximum allowable speed for a spiral bevel gearbox is typically 1500 RPM.

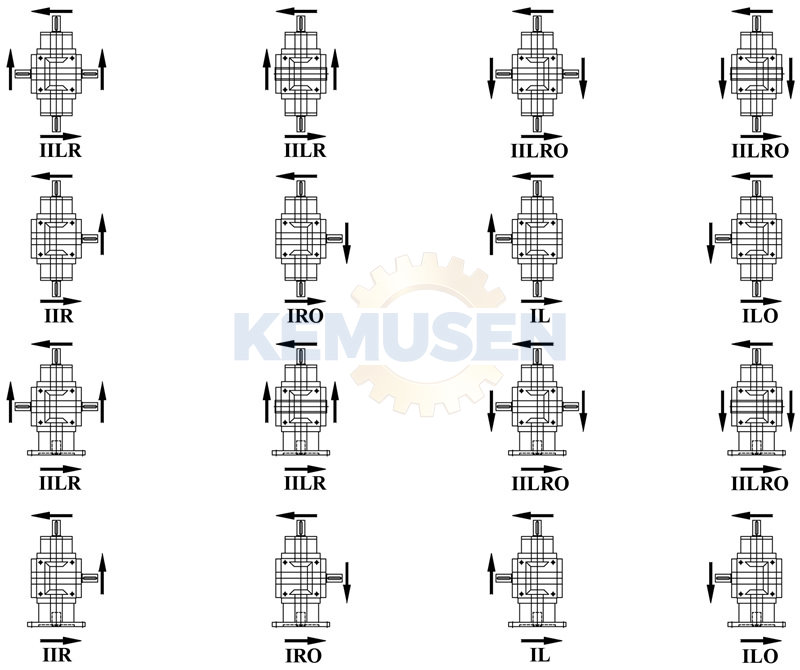

3. Shaft Arrangements And Rotation Directions
Note: Input and output shafts can be rotated in both clockwise(CW) and counter-clockwise(CCW) rotation directions.

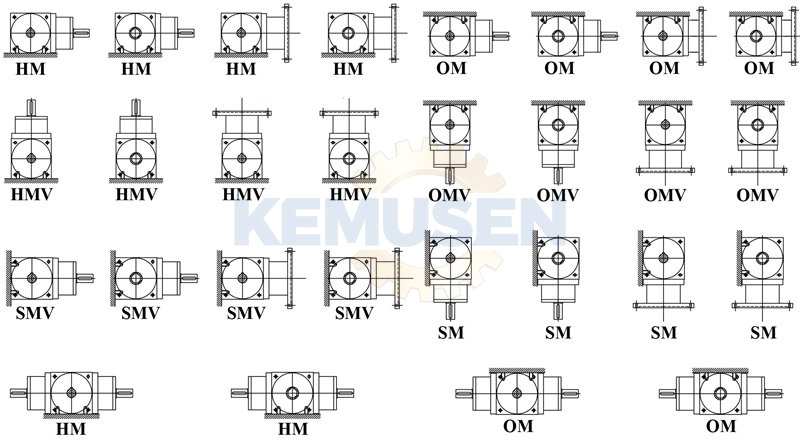

4. Mounting Positions
Square shape, all-round tapped holes for universal mounting positions, all sides mounting positions.
HM: Horizontal mounting
SM: Side mounting
OM: Overhung mounting
