Basic Parts And Materials of A Bevel Gear Screw Jack

A bevel gear machine screw jack replaces the traditional worm gear with a bevel gear set, allowing for higher travel speeds and greater efficiency while typically maintaining the self-locking safety of a machine (trapezoidal) screw. Bevel Gear Set (Drive) Consists of a pair of meshing gears that transfer power at a 90-degree angle. Lifting Screw (Spindle): The threaded rod that provides linear motion. In a machine screw jack, this is a trapezoidal (Acme) screw. Input Shaft: Connects to the motor or handwheel to drive the bevel gears.

Availability:

Quantity:



Inquire Add to Basket

Model:
KME1T - KME20T
Brand:
KEMUSEN

Parts And Materials

High-quality materials that meet international standards, typically produce the best-performing bevel gear screw jacks. Below is a summary of the various materials used in bevel gear screw jack construction.

KME1

0. Spiral Bevel Gears are lapped together in pairs, high quality alloy steel, case hardened

1. Housing is nodular cast iron.

2. Lifting screw is 45# steel. Custom 304 or 316 stainless steel.

3. Input shaft is hardened alloy steel. Custom 304 or 316 stainless steel.

4. Internal Drive Sleeve is aluminum bronze.

5. Traveling Nut is aluminum bronze.

6. Safety Nut is aluminum bronze.

7. Bearing is chromium bearing steel. Custom 304 stainless steel.

KME0

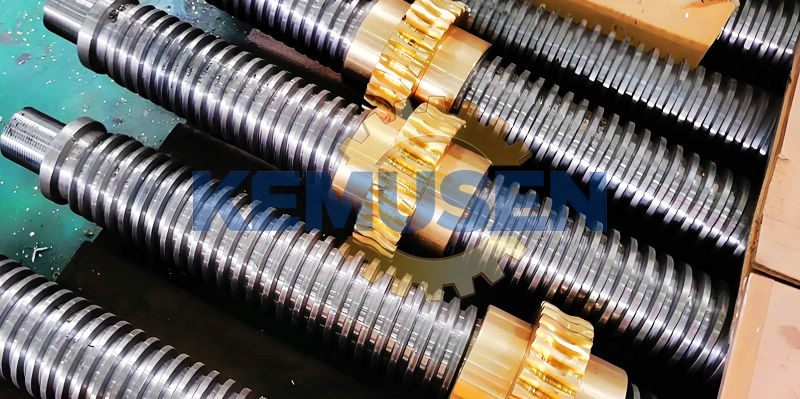

KME2
