Ball Screw Jack 5 Ton

Ball Screw Jack 5 Ton, full name 5-ton worm gear ball screw jack, with high precision ball screws and ball nuts 40x10 and 40x20, custom high lead ballscrews. It required input torque to approximately one-third the torque required for the 5 ton machine screw jack. Worm gear ratios are 6:1, 12:1 and 24:1. Custom stroke for all ball screw jacks, maximum travel length up to 3000mm. Ball screw jacks are common where higher speeds and duty cycles are needed. In addition, because of the higher efficiency of the ball screw (compared to a machine screw), ball screw jacks can decrease motor horsepower and other electrical requirements. We configures ball screw jacks with components such as bevel gearboxes, motors, gear reducers, shafting, coupling, and motion control devices to create complete multi-jack systems. We offer complete systems to meet your requirements. Customers have depending on us to specify their system components for decades.

Product Catalog

Standard Ball Screw Jack.pdf

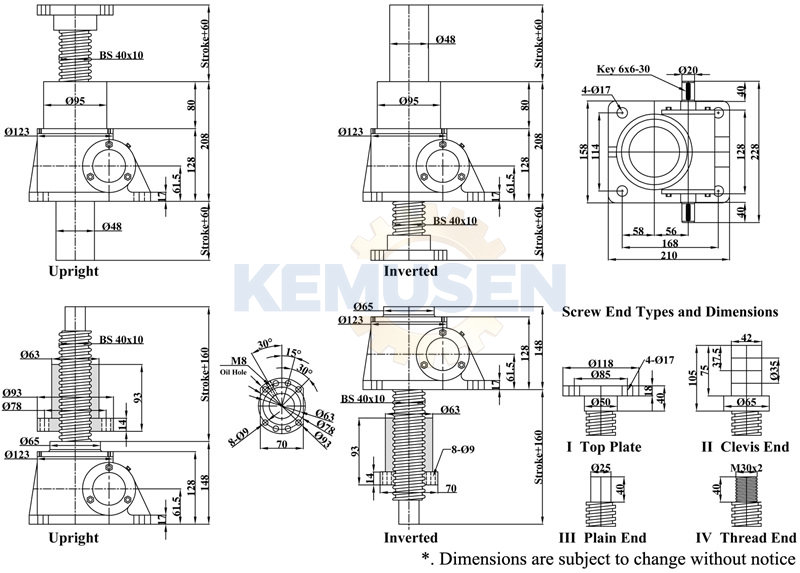

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
