Ball Screw Jack 35 Ton

Ball Screw Jack 35 Ton, full name 35-ton worm gear ball screw jack, with high precision ball screws and ball nuts 100x20. It required input torque to approximately one-third the torque required for the 35 ton machine screw jack. Worm gear ratios are 10-2/3:1 and 32:1. Custom stroke for all ball screw jacks, maximum travel length up to 9000mm. Ball screw jacks cannot be keyed for non-rotation the same way that machine screw jacks are keyed. A square nut and tube design solution for keyed ball screw jack. They are NOT self-locking so a brake motor needs to be included in the drive system and hand wheels are not a recommended option. Multi-screw lifting systems with mechanical synchronization are driven by a single motor, which makes them impervious to unequal load distribution and its negative effects on the synchronization of the ball screw jacks.

Product Catalog

Standard Ball Screw Jack.pdf

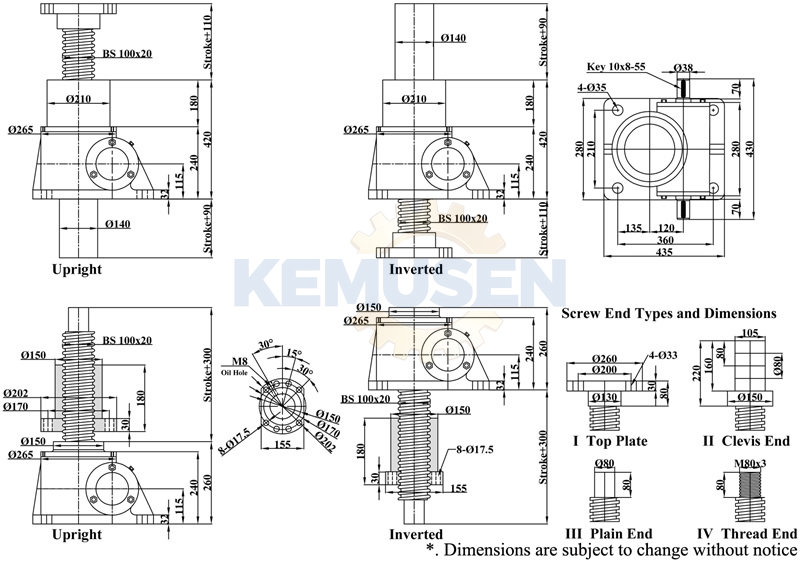

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
