Ball Screw Jack 300kN

Ball Screw Jack 300kN with Precision Ball Screw and Nut 100x20. A high efficiency ball screw replaces the standard trapezoidal lifting screw yet accommodates our modular screw jack system thus providing a wide range of sizes, travel speeds and configurations. The efficiency is about 3 times by using a ball screw, and operation is possible with less power. Available in 10:1 and 40:1 worm gear ratios. There are no standard stroke and all ball jacks travel lengths are built with customers required, maximum stroke length up to 9000 mm. When power, high speed, high duty cycle and repetitive positioning is required, our range of ball screw jacks provide the ideal solution. Can customize ball screw jacks to your specifications.

Product Catalog

Square Ball Screw Jack.pdf

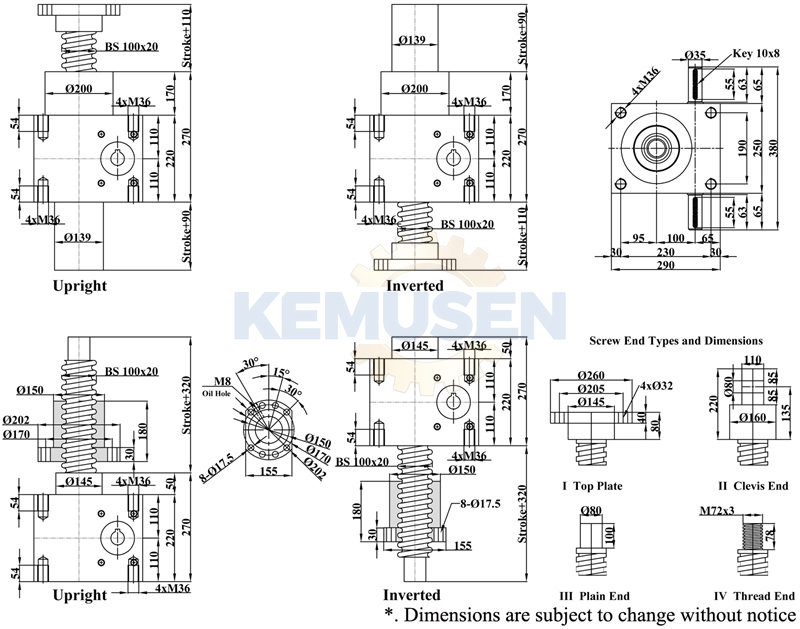

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
