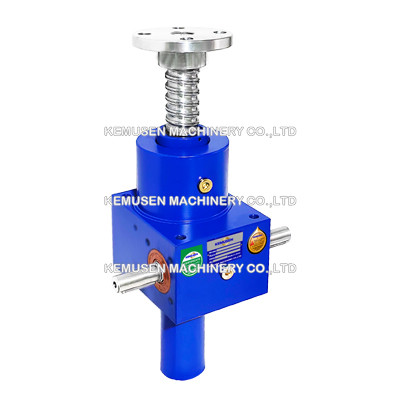

Ball Screw Jack 25kN

Ball Screw Jack 25kN with Precision Ball Screw and Nut 32x5, 32x10 and 32x20, custom higher lead ballscrews. Ball screw jacks are connected in a mechanically linked system then the complete system in some designs may be considered self-locking. Alternatively, to be sure, include a brake on the system either as a stand alone device or as a brake motor. Available in 6:1 and 24:1 worm gear ratios. There are no standard stroke and all ball jacks travel lengths are built with customers required, maximum stroke length up to 2000 mm. Ball Screw Jack Other Advantages: Improved speed, force, duty cycle, acceleration. Longer life cycle (low friction) Requires less motor power. Greater positioning accuracy. Higher static load and lower dynamic load. The single unit ball screw jack use without self-locking so a brake motor or other external locking device needs to be included in the drive system and hand wheels are not a recommended option. Can customize ball jacks to your specifications.

Product Catalog

Square Ball Screw Jack.pdf

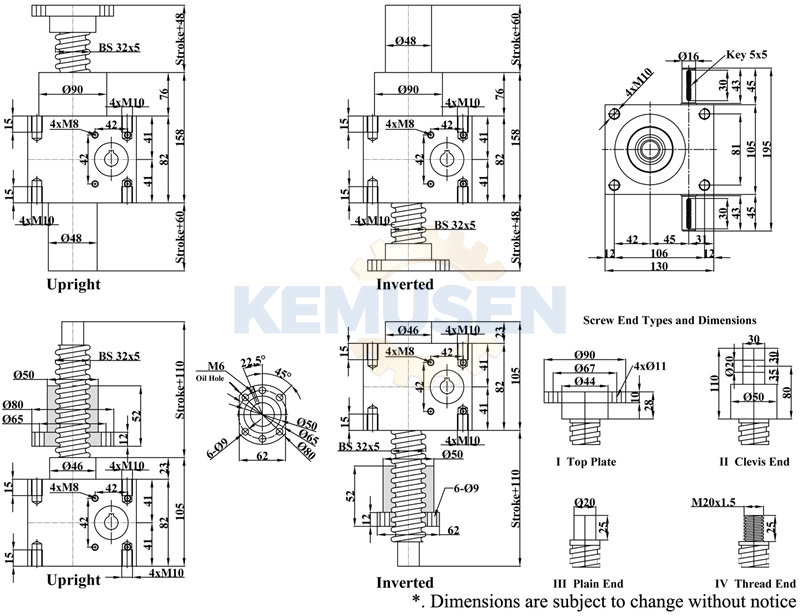

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
