Ball Screw Jack 200kN

Ball Screw Jack 200kN with Precision Ball Screw and Nut 80x10 and 80x20, custom higher lead ballscrews. The ball jacks with translating lifting screw system offers greater efficiency between the input and the useful output compared with a machine screw jack. In addition, it allows for greater actuation speeds and, due to the low friction, is very durable. Available in 10:1 and 40:1 worm gear ratios. There are no standard stroke and all ball jacks travel lengths are built with customers required, maximum stroke length up to 6000 mm. Ball Screw Jacks provide high efficiency and high speed in one linear positioning package. These actuators come in many standard models, or can be custom designed for any application.

Product Catalog

Square Ball Screw Jack.pdf

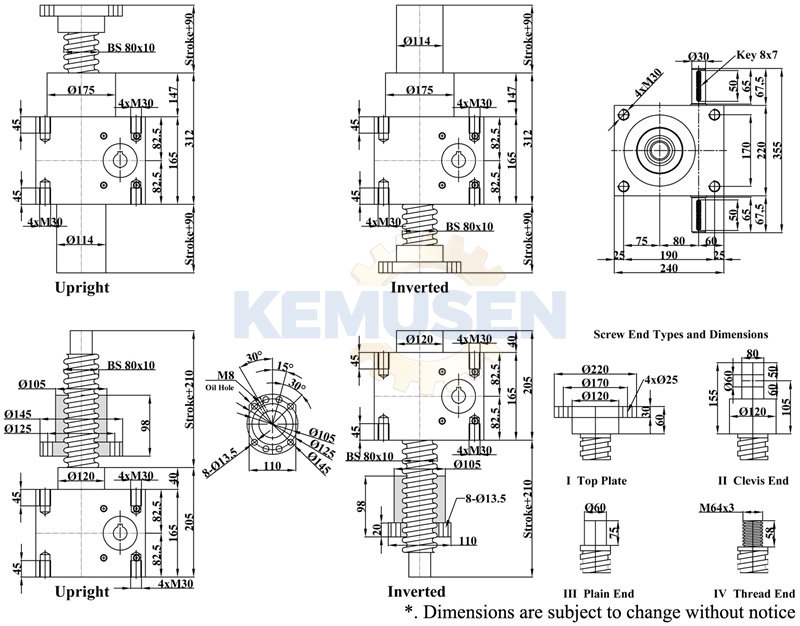

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
