Ball Screw Jack 2.5 Ton

Ball Screw Jack 2.5 Ton, full name 2.5-ton worm gear ball screw jack, with high precision ball screws and ball nuts 25x5 and 25x10, custom high lead ballscrews. It required input torque to approximately one-third the torque required for the 2.5 ton machine screw jack. Worm gear ratios are 6:1, 12:1 and 24:1. Custom stroke for all ball screw jacks, maximum travel length up to 2000mm. The ball screw jacks and lifting systems offer wide-ranging lifting and positioning solutions for diverse industries. Our jacks reliably move and accurately position loads. We configures jacks with components such as motors, gear reducers, shafting, coupling, and motion control devices to create complete multi-jack systems. These ball screw jacks are widely application in Earth Station Antennas, Solar Trackers, Conveyor adjustments, Platform lifts, Damper adjustments, Ergonomic lifts, Maintenance lifts, Roll adjustments, Packaging equipment, and Gate adjustments.

Product Catalog

Standard Ball Screw Jack.pdf

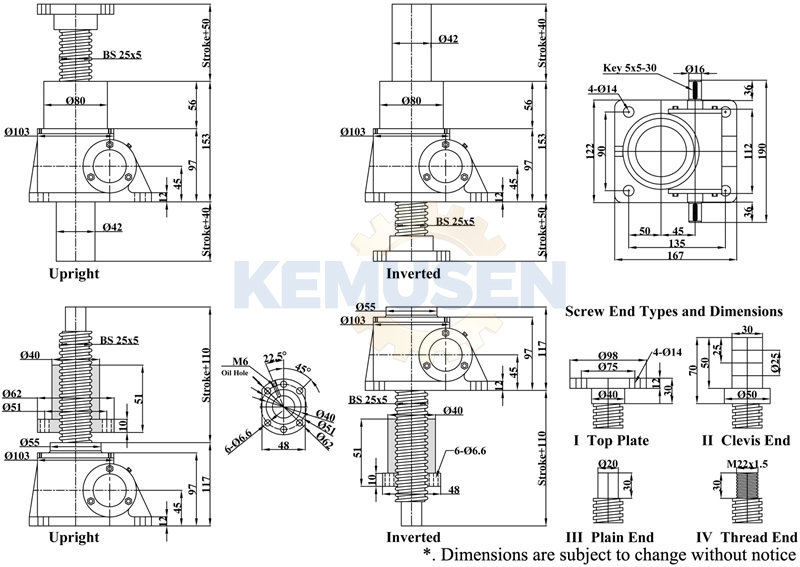

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
