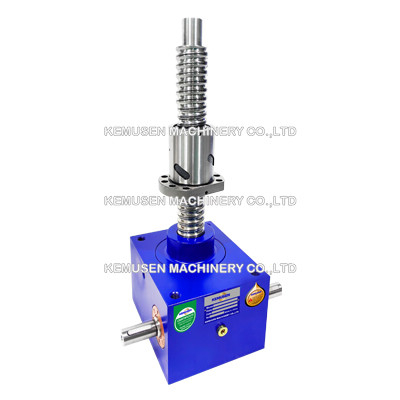

Ball Screw Jack 150kN

Ball Screw Jack 150kN with Precision Ball Screw and Nut 63x10 and 63x20, custom higher lead ballscrews. The ball jacks with low-friction ball bearings that allow these screw jacks to use half the power required by an Acme screw jack to lift the same load. Typically used as actuators, they run at higher speeds than Acme screw jacks. Available in 9:1 and 36:1 worm gear ratios. There are no standard stroke and all ball jacks travel lengths are built with customers required, maximum stroke length up to 4000 mm. Ball Screw Jacks are used extensively in the automobile manufacturing industry, for example: the manufacture of airplane components and wind power application.

Product Catalog

Square Ball Screw Jack.pdf

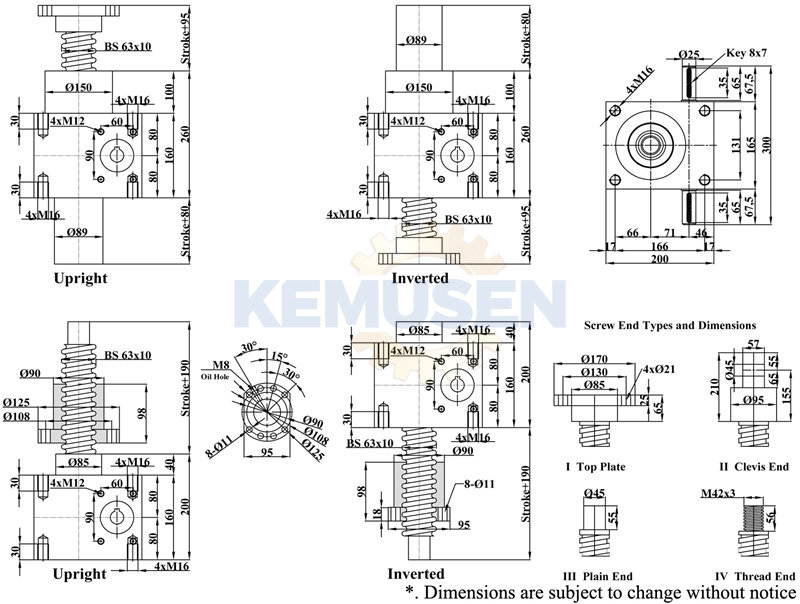

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
