Ball Screw Jack 100kN

Ball Screw Jack 100kN with Precision Ball Screw and Nut 50x10 and 50x20, custom higher lead ballscrews. The ball jacks configurations include Upright Translating Ball Screw Jack, Inverted Translating Ball Screw Jack, Upright Rotating Ball Screw Jack, Inverted Rotating Ball Screw Jack, Double Clevis Ball Screw Jack, Upright Keyed Ball Screw Jack, and Inverted Keyed Ball Screw Jack. Available in 9:1 and 36:1 worm gear ratios. There are no standard stroke and all ball jacks travel lengths are built with customers required, maximum stroke length up to 3500 mm. This printing press application utilizes two upright translating Ball Screw Jack 100kN  to set the proper gauge on the feed rollers. In this automobile lift, the linear motion is provided by two inverted rotating ball screw jacks.

Product Catalog

Square Ball Screw Jack.pdf

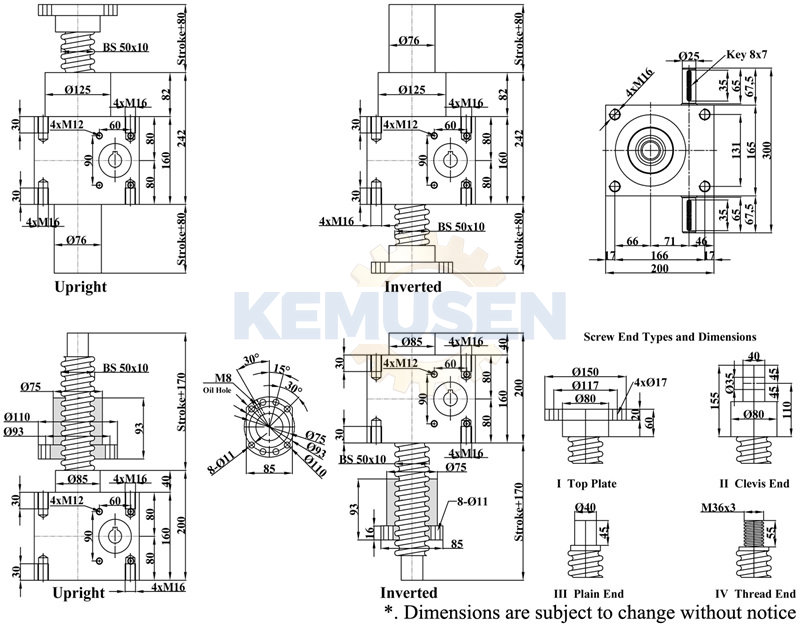

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
