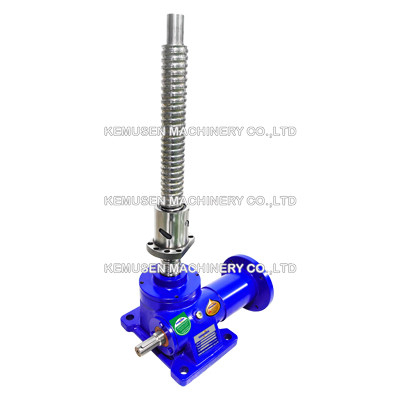

Ball Screw Jack 10 Ton

Ball Screw Jack 10 Ton, full name 10-ton worm gear ball screw jack, with high precision ball screws and ball nuts 50x10 and 50x20, custom high lead ballscrews. It required input torque to approximately one-third the torque required for the 10 ton machine screw jack. Worm gear ratios are 8:1, 12:1 and 24:1. Custom stroke for all ball screw jacks, maximum travel length up to 3500mm. Ball screw jacks provide high efficiency and high speed in a linear positioning package. The low friction ball screw and nut design provides longer life at load and requires less power to achieve a specified thrust and movement. Ball Screw Jacks can be used individually, in tandem or as part of a larger mechanical system. Can customize ball jacks to your specifications.

Product Catalog

Standard Ball Screw Jack.pdf

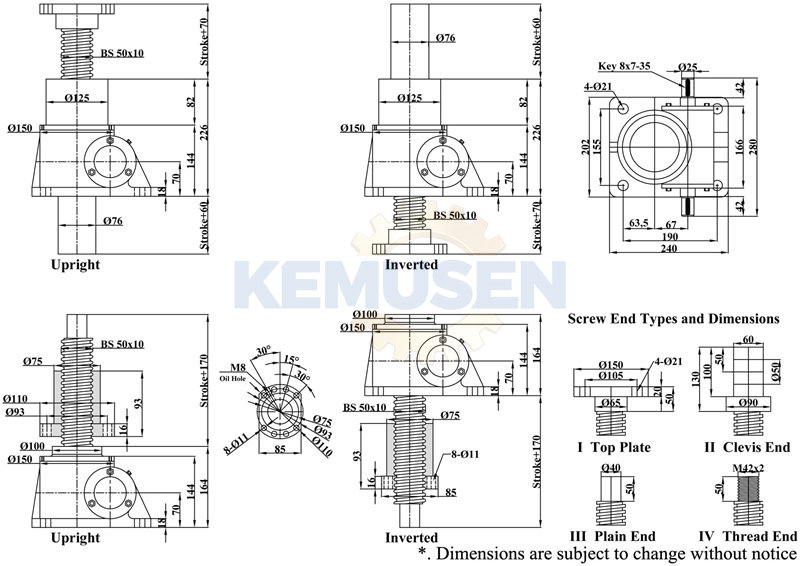

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
