Ball Screw Jack 1 Ton

Ball Screw Jack 1 Ton, full name 1-ton worm gear ball screw jack, with high precision ball screws and ball nuts 20x5 and 20x10, custom high lead ballscrews. The worm gear ratios are 6:1, 12:1 and 24:1. Custom stroke for all ball screw jacks, maximum travel length up to 1500mm. Ball screw jacks include ball nuts that are about 90% efficient so the jacks require much less energy to lift an equal load than their machine screw jack counterpart. They are NOT self-locking so a brake motor needs to be included in the drive system and hand wheels are not a recommended option. Our experienced engineers can assist you in easily customizing screw jacks with ball screws to provide compact, quiet and accurate positioning, improve your machine's performance, lower your cost, and match the exact requirements of your light-to-medium load applications.

Product Catalog

Standard Ball Screw Jack.pdf

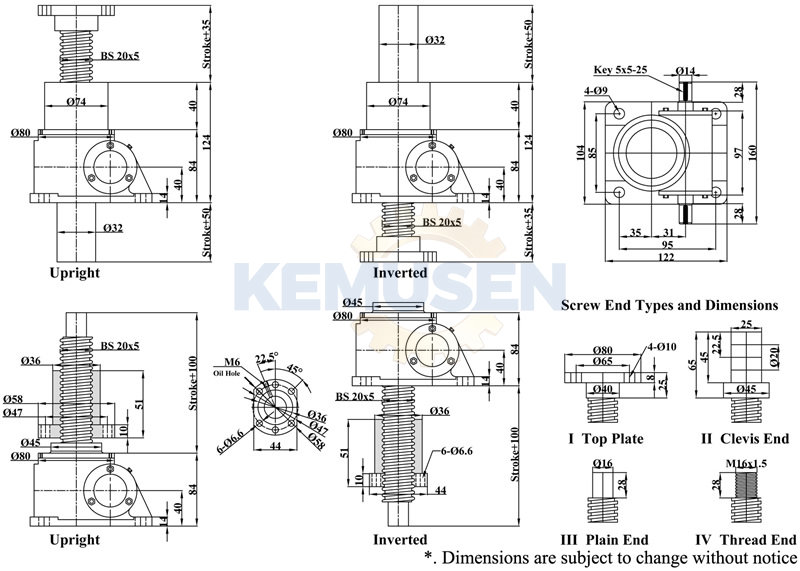

Product Dimensions

Free 2d .dwg, .dxf drawing, 3d cad models.
